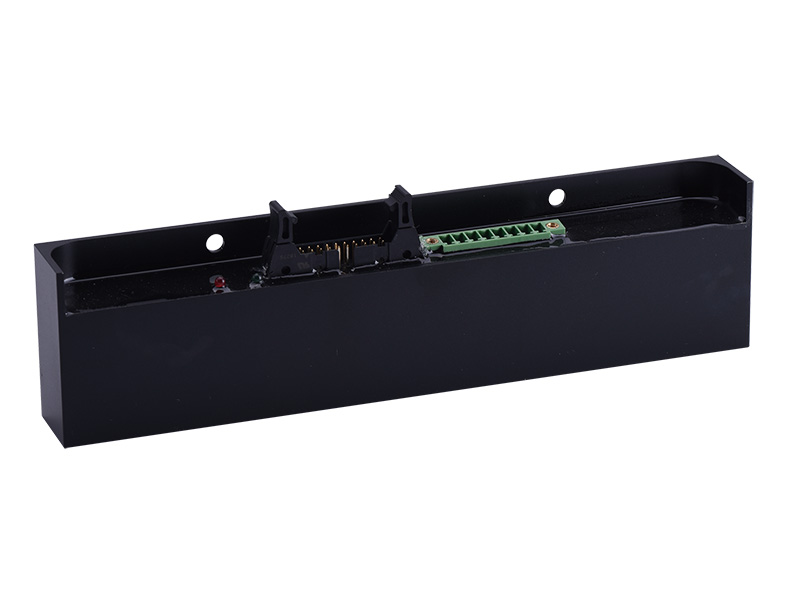

The magnetic guidance sensor is mounted on an unmanned AGV, with 35-40mm between the guide magnetic tape and MGS-2443-H16R sensor. During the AGV movement, if the trajectory deviates from the magnetic track, the magnetic guidance sensor will receive the information, then respond instantly through a system command to control the AGV and return it to the normal track. The MGS-2443-H16R output is 16 bits digital signals. Each bit can control an NPN open-collector output, allowing the user to control 16 loads of less than 100mA.
| Item | Parameter | |
| Product Model | MGS-H-S-20-C20-N-R | |
| Product Code | MGS-2443-H 16R | |
| Main Material | Aluminum alloy | |
| Power Supply | 9-24VDC | |
| Load Current | 100mA ( max) | |
| Output Bits | 16 bit | |
| Output Mode | Digital signal | |
| Operation Air Gap | 35-40mm | |
| Area | ±100mm | |
| Output Structure | NPN open-collector output | |
| Signal Type | VOL≤0.6V | VCC=12V |
| VOH≥11V | ||
| Protect Circuit | Short-circuit protection; Polarity Protection | |
| Insulation Resistance | 50MΩ (min) | |

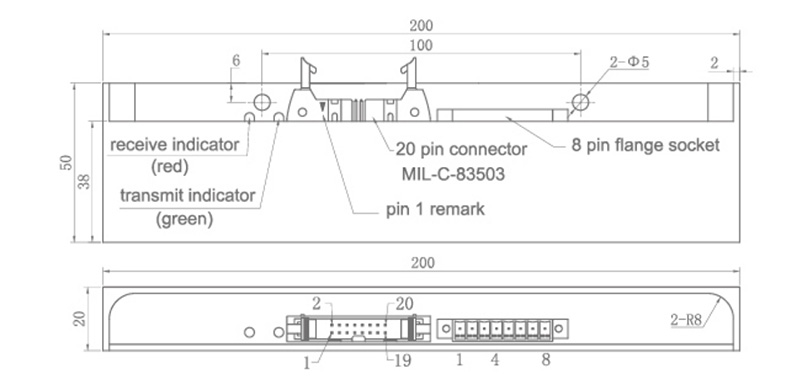

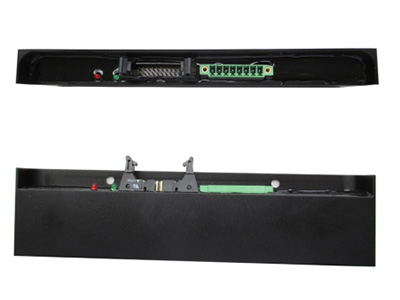

| Electrical Connection | 20PIN Connector | Parallel signal output interface MIL-C-83503 compliant |
| 8PIN Flange socket | RS-485 interface | |
| Response Time | Parallel | 1ms MAX |
| Serial | 8ms @19200(Baud rate related) | |
| Tensile Strength | 5kg | Between socket and housing |
| Service Life | 3 years | |
| Operating Temperature | -25-75°C | |
| Operation Humidity | 90% max | |
| Machinery Vibration | 7g | f=20-400Hz |
| Mechanical Shock | 10g/16ms | 1000 times |
| Degree of Protection | IP65 | |
| ESD Protection | 4.5KV | |
| Electric Interference | 200V/m | |
| Installation | Adaptive magnetic stripe: N pole | 50x1.2, 40mm distance from the center line of the track with the magnetic intensity less than 10GS |
| Mounting direction | Align with the center line of the magnetic track | |
| Application Field | AGV | |
| Trackless moving goods shelf, logistics picking | ||
| AGC |
