Magnetic Guide Sensor

Magnetic sensors product, Magnetic position sensor

YUANBEN’s self-developed MGS series magnetic guide sensors are used to detect and report the position of a magnetic field along its horizontal axis. This sensor is intended for use in robot navigation, using a magnetic tape to form a guide on the floor. Compared to other guiding techniques, magnetic guides can be easily removed and relocated if the course needs to change. The magnetic tape track can be fully embedded and hidden under floor, protecting it against dirt and changing light conditions.

With an exceptionally high sensitivity and accuracy, YUANBEN’s magnetic guide sensor is primarily used for applications in Automatic Guided Vehicles (AGVs), moving material on factory floors, unmanned warehouse management, automatic shelf replenishing in supermarkets, and other processes.

    1. MGS-H01/H16 Magnetic Guide Sensor
    2. MGS-H01/H16 Magnetic Guide SensorHigh accuracy, large testing air-gap.
      Wide power voltage range 12-24Vdc, ideal for harsh environments
      Compact and easy to install
      The detecting air-gap is more than 40mm upon customer request

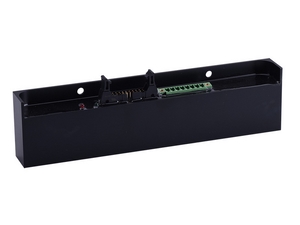

    1. MGS-2743-H16R Magnetic Guidance Sensor
    2. MGS-2743-H16R Magnetic Guidance SensorThe magnetic guidance sensor is mounted on an unmanned AGV, with 35-40mm between the guide magnetic tape and MGS-2443-H16R sensor. During the AGV movement, if the trajectory deviates from the magnetic track, the magnetic guidance sensor will receive the information, then respond instantly through a system command to control the AGV and return it to the normal track.
YUANBEN designs, manufactures and supplies industrial sensors for a wide range of applications worldwide. Over the years, our portfolio range of magnetic sensors and expertise in offering custom sensing solutions has significantly expanded. As a specialist sensor manufacturer, we pride ourselves in our knowledge of sensing technology for developing custom solutions for your industrial applications. We strive for constant improvement in the field of sensor engineering, allowing our experienced team to provide our customers with high quality sensors.
