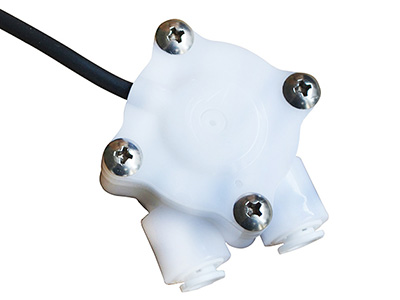

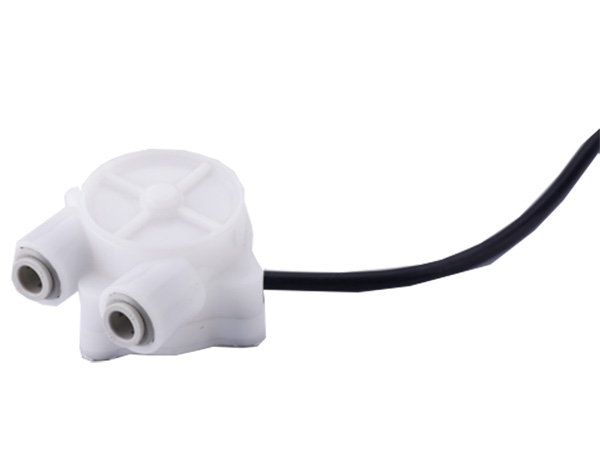

The FST-002 turbine flow rate sensor is ideal for low flow liquid monitoring. The low cost coupled with 1/2% repeatability makes it an ideal solution for replacing dispensing timer systems. Unlike existing timing systems, turbine technology is not influenced by changes in system pressure caused by aging filters. The sensor’s standard power and output specifications make it easy to retrofit to existing controllers.
| Wetted Materials | |
| Body | Nylon 12 |
| Turbine | Nylon 12 Composite |
| Bearings | PTFE/15% Graphite |
| Flow Rate Flange | 0.2 LPM to 1.5 LPM |
| Operating Pressure | 250 PSIG (17.2 bar) |
| Burst Pressure | 2000 PSIG (137 bar) |
| Operating Temperature | -4°F to 212°F (-20°C to 100°C) |
| Viscosity | 32 to 81 SSU (8 to 16 Centistokes) |
| Filter | < 50 Microns |
| Input Power | 5 to 24 VDC @ 8mA |
| Output (Hz) | NPN Sinking Open Collector @ 20mA Maximum |
| Leakage Current 10µA (Pull-Up Resistor Required) | |
| Accuracy | ±2% of Reading Repeatability 0.5% of Full Scale |
| Electrical Connection | DIN 9.4mm Spacing or 24 AWG 3 ft. Cable |
| Inlet/Outlet Ports | 1/4˝ NPT Male or 10mm Tube O-Ring |
