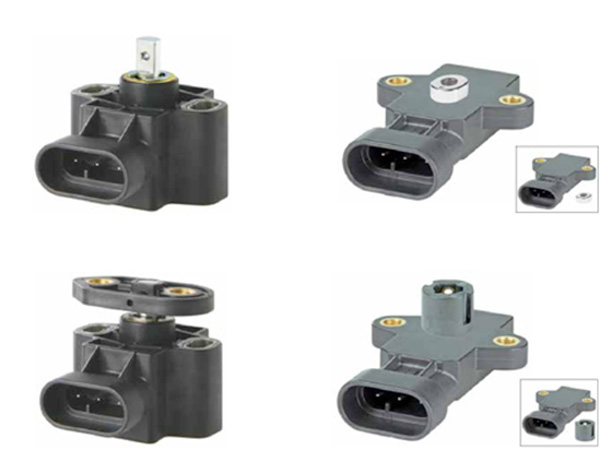

RADS Series Rotary Displacement Sensor with External Actuator
Intelligent sensing solutions, Magnetic sensors product
RADS Series Hall-effect rotary angle displace sensors provide non-contact sensing in harsh transportation and industrial applications at a competitive cost.
Multiple operating ranges from 60° to 360° are tolerant to over-travel and allow for usage in most common applications. Low voltage and high voltage versions cover an input voltage range of 4.5 Vdc to 30 Vdc.
Features
- True, non-contact operation
- unlimited rotation (RAS Series)
- Solid-state Hall-effect technology
- Rugged IP69K-sealed package with integral connector
- Automotive-grade EMI/EMC testing, integrated reverse polarity, and short circuit protection
- Industry-standard AMP termination, 32 mm mounting pitch, North American or European pin-out styles, and compact package
- Multi operating ranges up to 360°
Applications
Transportation
- Position and movement detection (pedals, throttles, gear shift, levers, steering, linkages, and hitches in trucks, buses, off-road vehicles, cranes, and industrial/ construction/agricultural vehicles and equipment)
- Suspension/kneeling position (buses, trucks)
- Tilt/trim position (boat engines, tilling equipment)
Industrial
- Valve control
- HVAC damper control
- Irrigation equipment pivot control
Electrical Parameters
| Characteristic |
RADS series (Low Voltage) |
| Supply voltage |
5 ±0.5 Vdc |
| Supply current: Normal |
20 mA max. |
| during output to ground short |
25 mA max. |
| Output: standard |
0.5 Vdc to 4.5 Vdc Ratio-metric |
| inverted |
4.5 Vdc to 0.5 Vdc Ratio-metric |
| Output signal delay |
4 ms typ. |
| Reverse polarity protection |
-10 Vdc |
| Overvoltage protection |
10 Vdc |
| Output to ground short circuit |
continuous |
| Resolution |
12 bit |
| Output load resistance (pull down to ground) |
10 kOhm typ. |
| EMI: radiated immunity |
100 V/m per ISO11452-2 from 200 MHz to 1000 MHz |
| EMI: conducted immunity |
100 mA BCI per ISO11452-4， from 1 MHz to 200 MHz |
Mechanical Parameters
| Characteristic |
RADS Series (Low Voltage) |
| Expected Life |
infinite rotation |
| Air gap: bare magnet actuator |
3,00 mm ±0.5 mm [0.12 in ±0.02 in] |
| Air gap: housed magnet actuator |
2,00 mm ±0.5 mm [0.08 in ±0.02 in] |
| misalignment |
2.002,00 mm [0.08 in] max. |
| Material |
|
| Magnet |
NdFeB |
| Sensor Housing |
PBT plastic |
| Housed Magnet over-mold sensor |
PPS plastic |
| Housed Magnet Bushing Sensor bushing |
brass |
| Mating Connector |
AMP Super-seal 282087-1 |
| Mechanical End Stop |
no |
| Mounting screw sizes: sensor to mounting surface |
non-magnetic, stainless steel M4 X 0.7 screws and 8 mm [0.31 in] OD washers |
| Housed magnet actuator to actuator mounting shaft |
non-magnetic, stainless steel M3 X 0.5 plain cup point set screws |
| Approvals |
CE |
