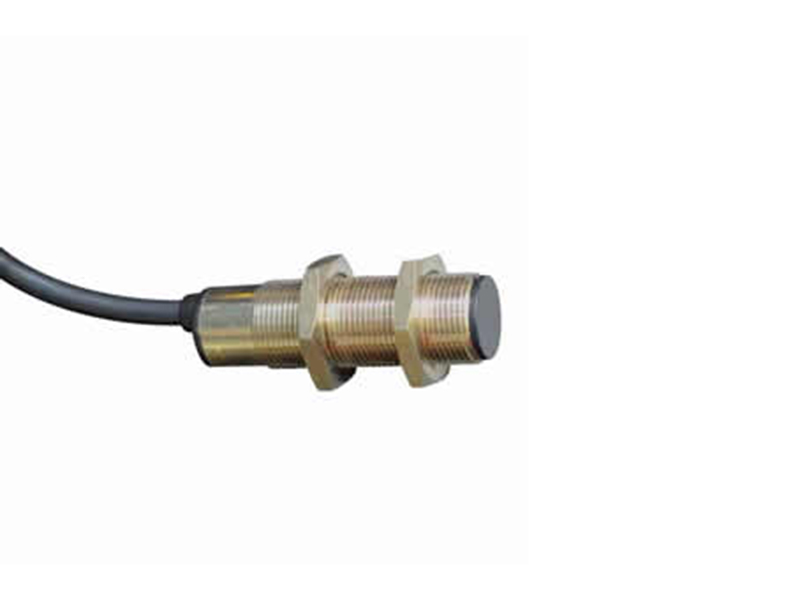

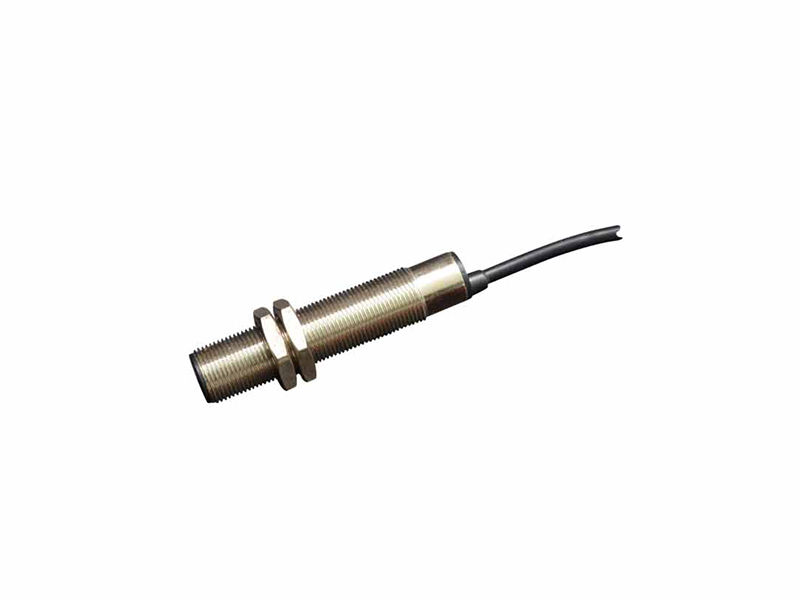

IPS Series Proximity Sensor

IPS Series Proximity Sensor
IPS Series Proximity Sensor IPS Series Proximity Sensor

Inductive proximity sensor allows contactless detection of objects, and can be used when the target is metal. It is the most widely used switches in industry sectors including manufacturing, robotics, semiconductor, etc.

Features
  • Compact size saves space.
  • Indicator lamp can be checked even from the rear.
  • Sealed, protection class is IP67.
  • Multiple options of dimensions and sensing distance.
  • Enhanced circuit protection (surge absorption, load short circuit and reverse connection).
Applications

IPS series proximity sensors are widely used in a number of fields, such as machine, metallurgy, chemical industry, light textile, printing industry, automatic production line equipment.

Technical Parameters
Model IPS-A-2.5-M1470 IPS-D-2-N-M1255-300*1
DC or AC AC DC
Dimensions M14×70 M12×55
Housing Code M1470 M1255
Voltage 90-250VAC 5-24VDC
Max. Load Current 200 mA 300 mA
No Load Current 12 mA >10 mA
Work Air-gap 2.0 mm 2.0 mm
Sensing Distance FM/NFM(Flush Mount/ Non Flush Mount) 2.5 mm/5 mm 2.5 mm/5 mm
Voltage Drop at Full Load >15 VDC 2.5VDC
Working Temperature -10 to 85℃ -10 to 85℃
Frequency 100Hz 500 Hz
Position Indication LED LED
Cable Length 1000 mm 1000 mm
Material of Housing Brass Brass
