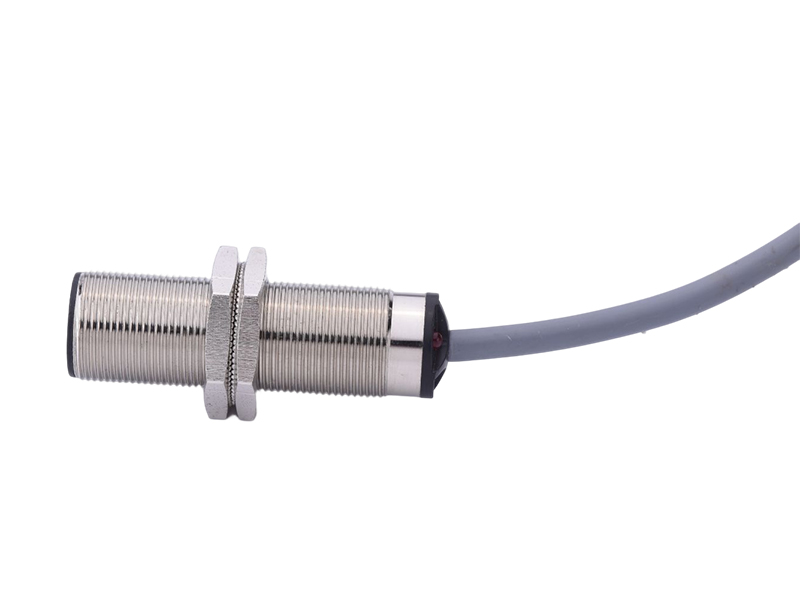

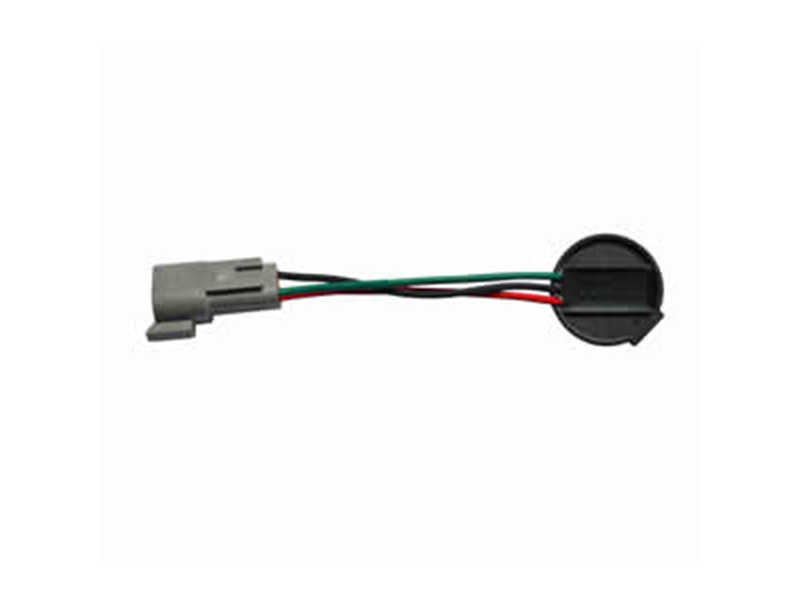

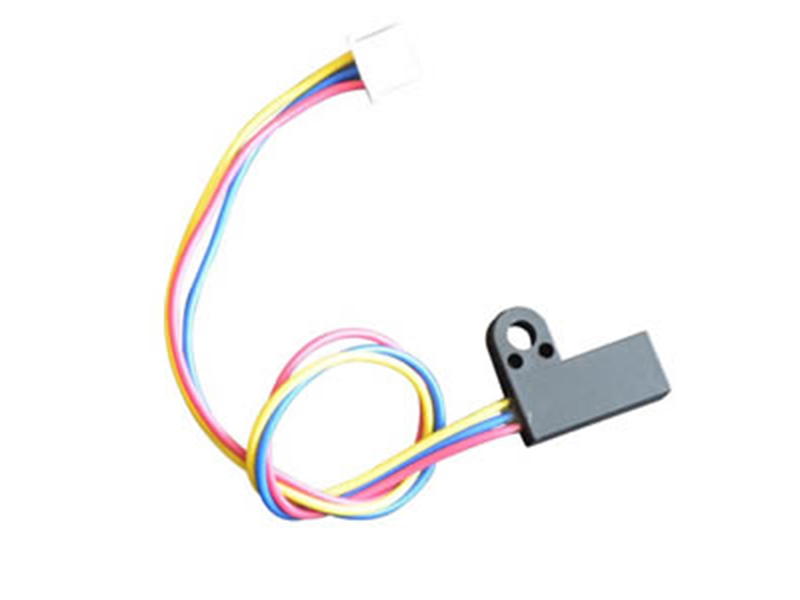

HPS Series Hall-Effect Proximity Switch

HPS Series Hall-Effect Proximity Switch
HPS Series Hall-Effect Proximity Switch HPS Series Hall-Effect Proximity Switch HPS Series Hall-Effect Proximity Switch

HPS series proximity switch is a Hall-effect proximity switch, and there are two models of sinking and sourcing. There is a three-wire, solid state device recommended for low current DC loads such as interfacing with a programmable controller. It provides compact, reliable sensing for virtually infinite life. A LED indicator light illuminates when switching occurs. Models are available in current sinking (NPN) and current sourcing (PNP) models, either can be used for loads such as counters and solid state relays. Selection of sinking or sourcing models depends on the requirements of the programmable controller.

Features
  • Solid state reliability, no moving parts means longer life, no contact bounce
  • Easy to mount on Yuanben actuators
  • Able to mount several switches on one actuator
  • LED indicator for ease of positioning and troubleshooting
  • Reverse polarity and over-voltage protection
  • Available with pigtail leads (in 2 lengths) or quick connect (with two cable length options)
Applications

The HPS series proximity sensors are widely used in many fields, such as machine, metallurgy, chemical industry, light textile, printing, document shredder etc.

Technical Parameters
Model HPS-1-5-3N-M1650-500
Housing Code M1650
Power Voltage 5 to 24VDC
Output Current 20mA
Output Voltage ≤400mV
Working Air-gap 5mm
Position Accuracy 0.02mm
Frequency 50 to 100 KHz
Contact Mode Normally open
Anti-polar Protection Yes
Output Mode NPN, PNP
Actuator Code Selectable
Cable and Length UL2464AWG26, 500mm
Working Temperature 10 to 125℃
Material of Housing H62 or H59
Protection Class IP65
Position Indictor LED
