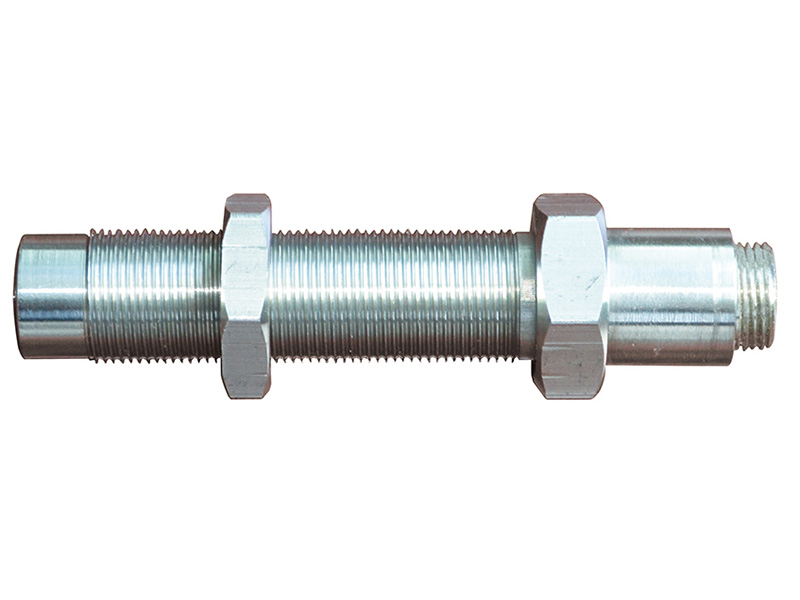

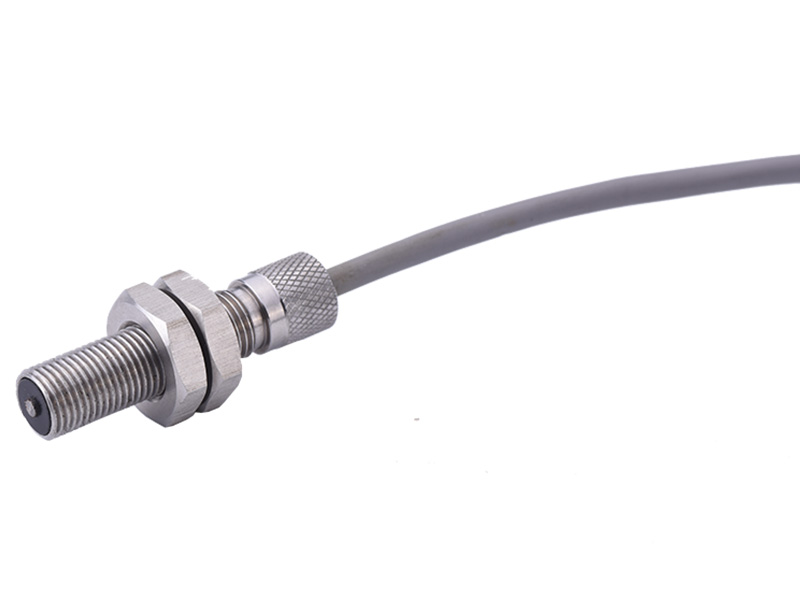

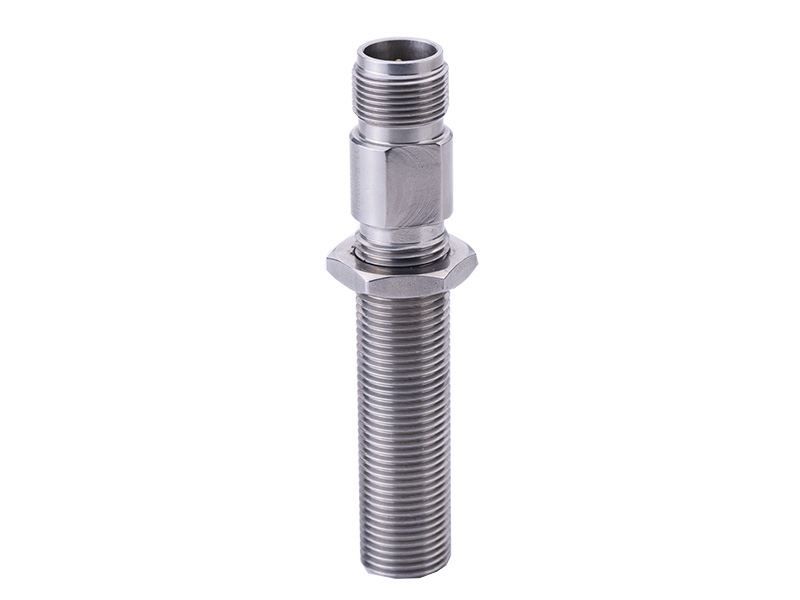

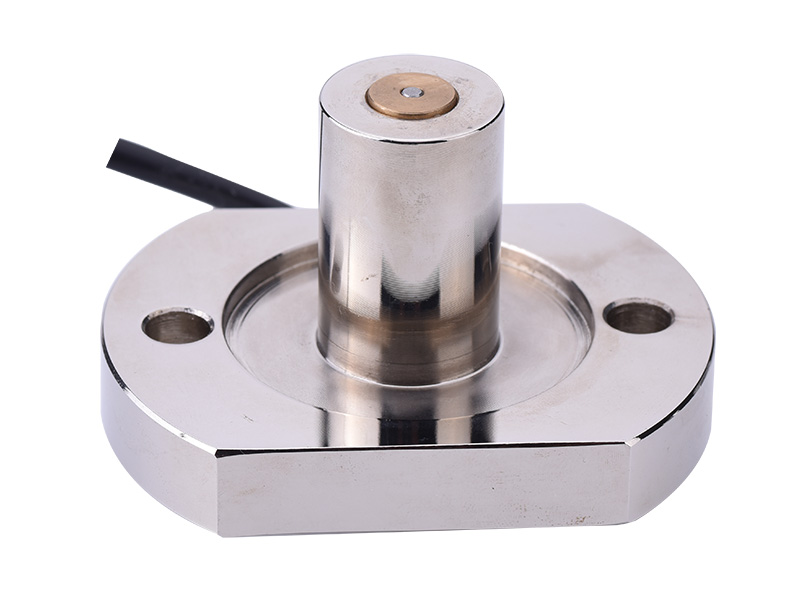

YUANBEN’s MEVS magnetic speed sensor is made of a magnetoresistance sensor chip and metal housing. It is used to detect the position and rotation speed of magnetic conductive gear teeth. The magnetic rotation speed sensor features a high response frequency, high accuracy, excellent anti-interference, compact packaging, easy mounting, high reliability and wide detecting temperature range, making it applicable in a variety of industries, including textile, transport, metallurgy, chemistry, aerospace, automotive, robotics and machinery.
| Model | MEVS-2-2. 4-M I 2 | MEV S-2-2.4-M I 0 |
| P/N | VS-08 | VS-06A |
| Power Voltage | No | No |
| Short Circuit Protection | yes | yes |
| Output Signal | sine wave | sine wave |
| Output Voltage | proportional to target speed | proportional to target speed |
| Output Current | 20mA | 20mA |
| Output Resistance | 1.7KΩ±10% | 1.0 KΩ±15% |
| Output Inductance | 400mH±20% | 250mH±20% |
| Testing Speed Range (RPM) | 40-6000RPM | 40~6000RPM |
| Frequency | 10kHz | 10kHz |
| Rotational Direction of Gear | No | No |
| Working Air-Gap | 0.5-2.0mm | 0.5-2.0mm |
| Insulate Resistance | 100MΩ | 100MΩ |

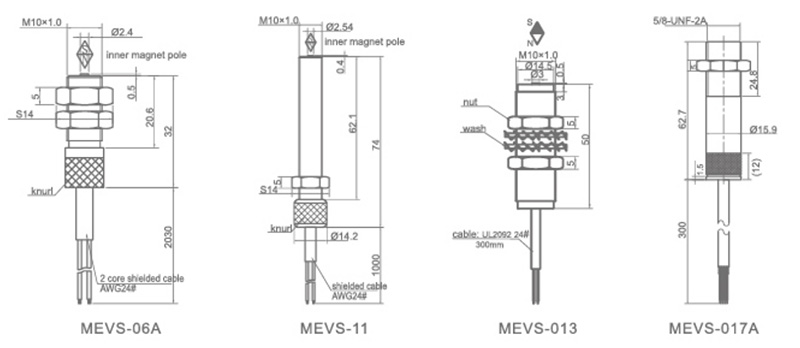

| Housing Code | M12*50 | M1032 |
| Direction of Sensor Mounting | No | No |
| Cable | 500mm | 500mm |
| Temp. Range | -40~-125℃ | -40~-125℃ |
| Protection Class | IP65 | IP65 |
| Material of testing Target | Low carbon steel | Low carbon steel |
| Gear Type | 60 teeth, gear module: 2 | 60 teeth, gear module: 2 |
The MEVS sensor directly senses rotating ferrous gears such as web speed gears, power transmission gears, conveyor and other similar gear-based shaft encoders.
