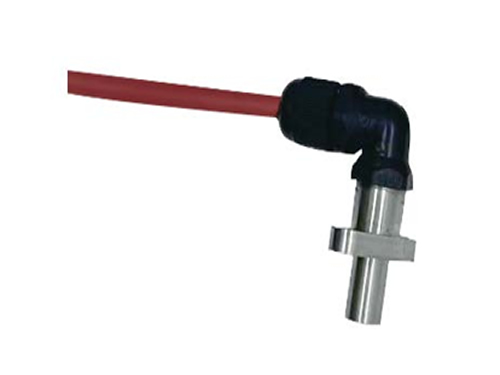

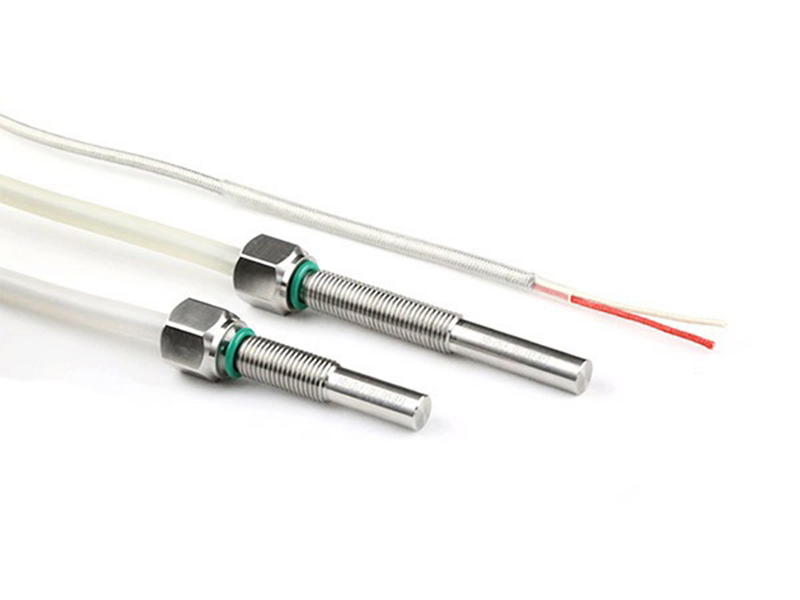

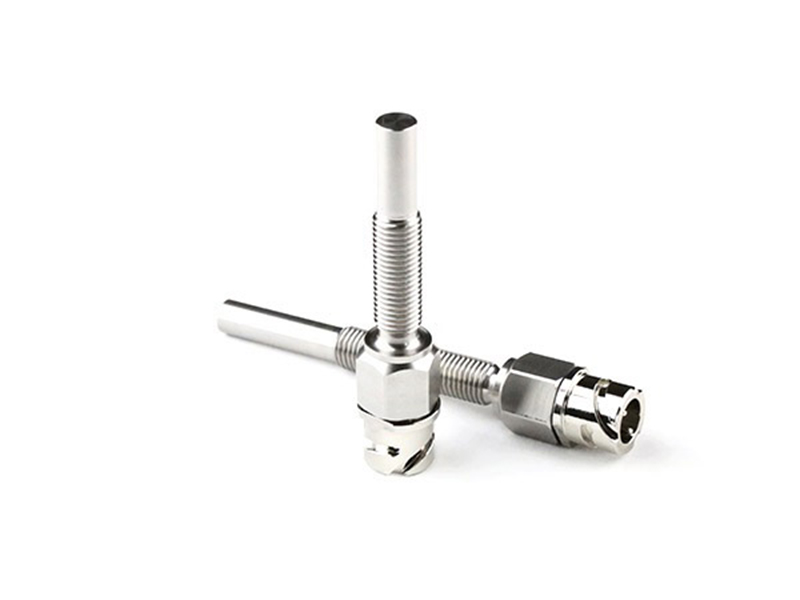

ECVS Series Dual-channel Speed Sensor for Electrically-Conductive Wheels

ECVS Series Dual-channel Speed Sensor
ECVS Series Dual-channel Speed Sensor ECVS Series Dual-channel Speed Sensor ECVS Series Dual-channel Speed Sensor

ECVS series dual-channel speed sensor is based on the principle of eddy current (non-magnetic), it is suitable in conjunction with an aluminum pole wheel (or other conducting, non-magnetic metal) for generating two nominally 90° phase shifted square wave signals indicating the rotary speeds and the direction of rotation.

This dual-channel speed sensor uses light-weight target wheels made of aluminum alloy for its weight-saving construction, and the free-maintenance is ensured since that the measuring surface does not attract magnetic particles such as ferric powder or swarf. The speed sensor is ideal for operation in presence of ferric particles due to non-magnetic measuring system.

Yuanben provide customized and standard speed sensors for automotive, railway, power and industrial applications.

Features
  • Maintenance and wear-free operation due to non-contact measurement of rotation
  • Safe detection of slow rotation from 0 Hz without pulse loss and for high-speed rotation up to 25 kHz
  • Suitable for electrically conducting target wheels
  • Two channels shifted by 90° provide the direction of rotation
  • Robust and compact stainless steel housing suitable for harsh application
  • Simple flange mounting
  • Customized cable fittings
Applications
  • Rail vehicles: traction control, anti-slip, motor speed, anti-skid
  • Automation: measurement of speed and positions at gears, motors and roller
Technical Parameters
Model ECVS-2431-055 ECVS-2431-055A
Electrical Data
Supply voltage 10-24VDC Typical 15VDC (12-30VDC)
Power protected Reverse polarity and over-voltage protected
Current consumption per channel ≤40 mA (no load) ≤30 mA (no load)
Outputs PNP or NPN Push-pull
Output signal (short circuit-proof) Square-wave signal 2 phase shifted square wave signal
Output signal level high ≥Vs-1.8V ≥Vs-1.5V
Output signal level low ≤1.5V < 1.5V
Output frequency 0 to 20 kHz 0 to 20 kHz
Duty (depends on measuring scale and air gap) 50% ±25% 50% ±25%
Electromagnetic compatibility Rail vehicles (EN 50121-3-2) Industrial applications (EN61000- 6-1 to 4) Compliant with EN 50155
Insulation 500 VAC (EN 60439-1) 500V/50Hz/1min
Mechanical Data
Module m of target wheel 2.00/3.00 Module 3
Width of target wheel ≥10 mm (smaller ones on request) Tooth width ≥15 mm Valley deep ≥3 mm
Form of target wheel Involute gear or rectangular gear 1:1 or slotted disk
Material of target wheel Steel, aluminum (others on request)
Operating temperature -40℃ to +120℃
Protection class IP68
Housing material of sensor Stainless steel, front side sealed hermetically
Electrical Connection
Cable length 1000 mm 2000 mm
