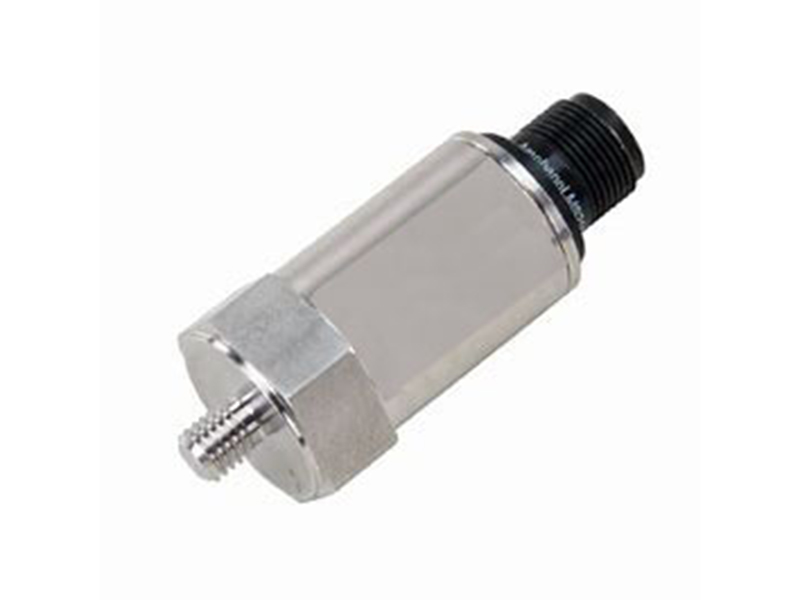

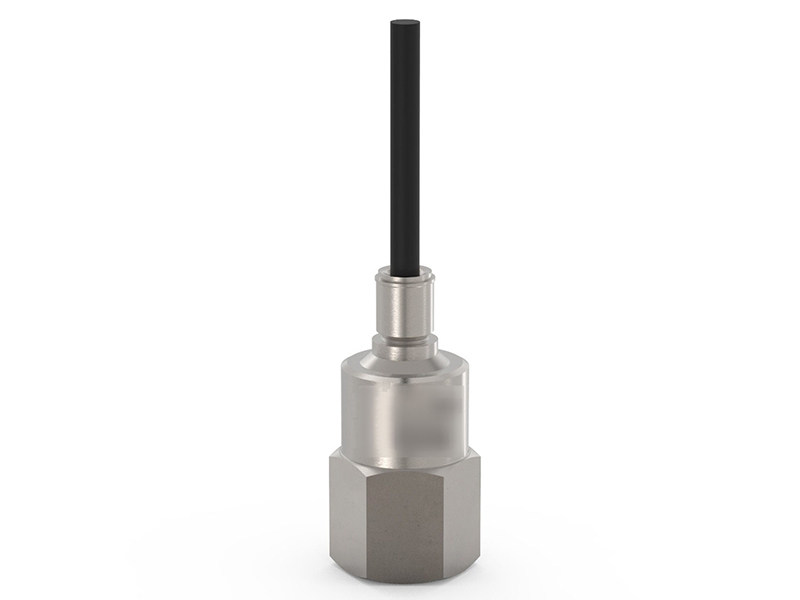

VPS-A002 Vibration Pickup Sensor

VPS-A002 Vibration Pickup Sensor
VPS-A002 Vibration Pickup Sensor VPS-A002 Vibration Pickup Sensor

VPS-A002 vibration pickup sensor is made of accelerometers, and it is frequently used to measure vibration as well as acceleration.

The top-entry velocity transducer with DC output is made from robust stainless steel throughout for continuous vibration monitoring in harsh environments. It is sealed to IP67 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers. It includes integral stainless steel over braided ETFE cable and is available with a wide range of mountings.

Applications
  • Air handling units
  • Building services
  • Fans
Technical Parameters
  • Output Current: 4-20mA DC proportional to rms velocity (mm/s)
  • Supply Voltage: 12-32V DC (4-20mA)
  • Frequency Response: 2Hz to 1kHz ±10%
  • Mounted Base Resonance: 5kHz (nominal)
  • Isolation: base isolated
  • Dynamic Range: 50g peak
  • Transverse Sensitivity: less than 5%
  • Operating Temperature: -25 to 90°C
  • Temperature Sensitivity: 0.08%/°C
  • Case Material: Stainless steel
  • Cable: integral stainless steel over braided ETFE
  • Standard Cable Length: 5m
  • Max. Cable Length: 100m
  • Mounting Torque: 8Nm
  • Weight: 150g (nominal)
  • Sealing: IP67
    • VPS-A002 Vibration Pickup Sensor
