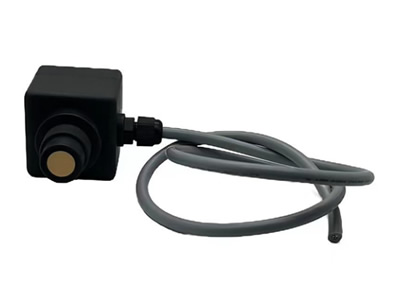

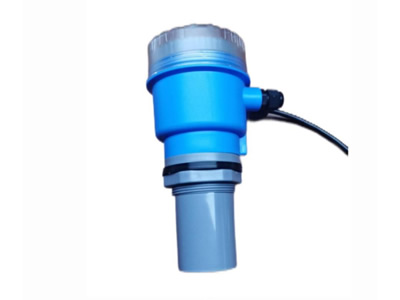

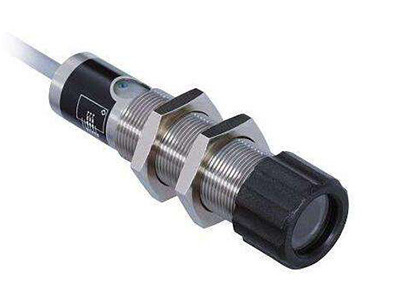

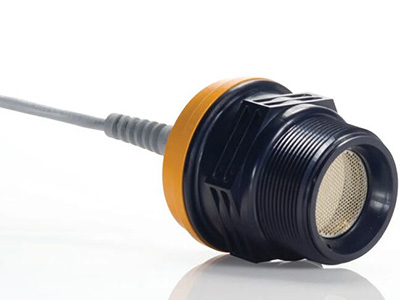

LUT-100 Ultrasonic Level Sensor
Features
- Due to the strong anti-interference ability, the ultrasonic level sensor can be used for liquid level measurement in harsh environments.
- Built-in temperature sensitive device ensures a real-time temperature automatic compensation function.
- A variety of output types are available to meet different industrial site interface requirements.
- The minimum blind zone is 10mm.
Applications
- Tap water, sewage treatment liquid level, oil drum oil level detection
- Food processing liquid level detection
- Liquid level detection of collecting wells and biochemical pools
- Liquid level measurement of various slurries
Technical Parameters
| Model |
LUT-101 With display |
LUT-102 （without display） |
| Measuring Range |
1m, 2m |
| Measurement Dead Zone |
≤0.06~0,15m （depending on range） |
| Emission Angle (Full Angle) |
Less than 6° |
| Precision |
±0.1%（±1mm or ±1.5mm） |
| Resolution |
1mm |
| Powered Supply |
DC12—24V Power consumption: < 1.5W |
| Output signal |
Current: 4~20mA, 0~20 mA Voltage: 0~5V, 0~10V Digital: RS485（Modbus） Switch output: three-way NPN |
| Connection Method |
M30*1.5 |
| Protection Class |
IP65 |
| Working Temperature |
-10℃~50℃ |
| Working Pressure |
0.8MPa |
| Temperature Compensation |
Full range automatic |
| Storage Humidity |
≤80%RH, no condensation |
