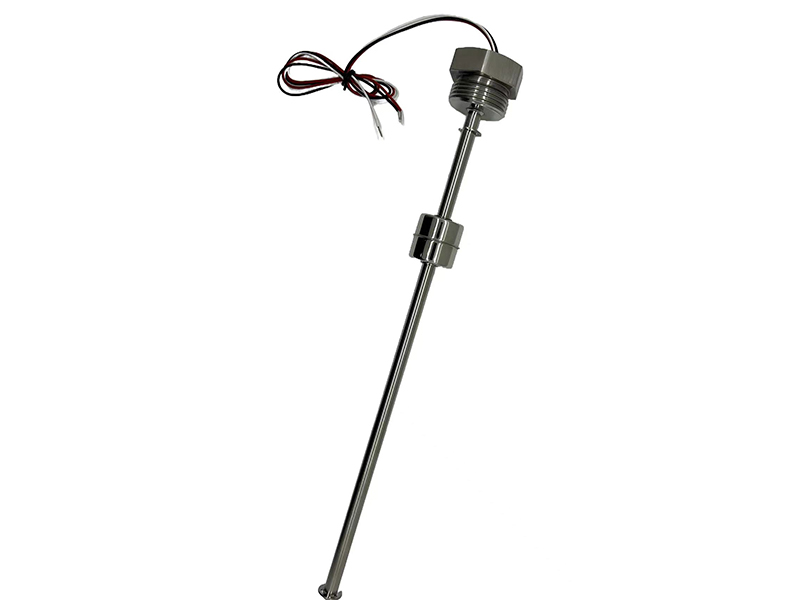

LMT-270 Series Level Transmitter
Designed for OEM needs, LMT-270 series level transmitters are the ideal level sensor for shallow tanks and reservoirs. This compact unit features a durable construction made of stainless steel or brass with a lightweight package, suitable for continuous level indication and ideal for tanks less than 2 feet deep.
Our level transmitters are exceptionally versatile because of a number of configurable options available.
Features
- Combining durability of metal with a compact design for restricted spaces
- Stainless steel or brass mountings and stems
- 4mm resolution

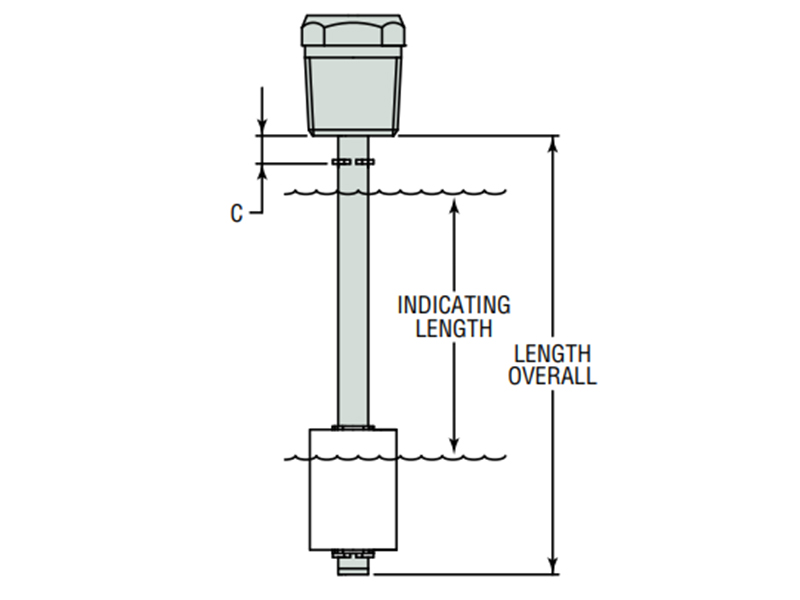

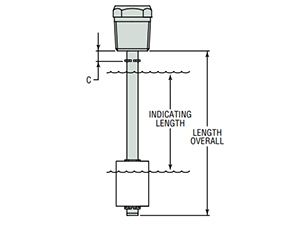

- Indicating length to 14˝ (356 mm)
- Stem length to 20˝ (508 mm)
Technical Parameters
- Mount and Stem Material: 316L or 304 stainless steel
- Max. Length: 20˝ (508 mm)
- Mounting Position: vertical ±30° inclination
- Float Stops: beryllium copper grip rings (brass unit), S.S. ARMCO PH-15-7MO grip rings (stainless steel units)
- Pressure Rating: 20 bar (Max.)
- Float Dimensions: dia.28×28×dia.9.5
- Min. Liquid Specific Gravity: 0.65g/cm³
- Operating Temperature: -40 to 125℃
- Mounting Type and Materials: SUS304 material, mounting thread 1-5/16-12UNF-2A
- O ring: Neoprene
- Electrical Connections Lead Wire Length: 24”
- Output: proportional voltage
