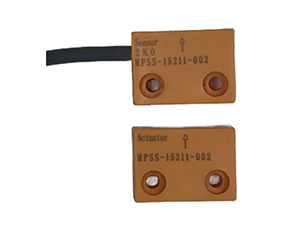

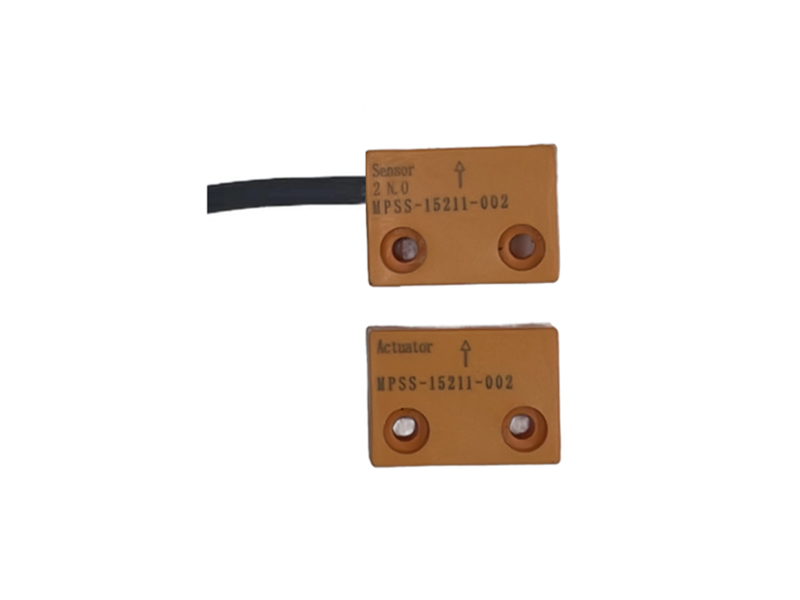

MPSS-2636 Coded Magnetic Safety Switch

Sensors and sensing equipment, Safety switches & accessories

  • MPSS-2636 Coded Magnetic Safety Switch
  • MPSS-2636 Coded Magnetic Safety Switch

MPSS safety switches are magnetically coded, solid state non-contact safety switches for use in machine guarding applications. Non-contact operation makes the switches easy to install and tolerant to misalignment. The solid state design is even more tolerant to shock and vibration, and provides single point switching which makes for a simpler and more reliable machine guard interlock. The additional security of the coded magnetic operation along with fully sealed IP67 rating make these switches ideal for use in wet or dusty and harsh environments. The MPSS safety switches have been designed to connect to the safety control unit (or named as safety delay).When installed correctly, up to 30 switches can be installed in series.

Applications
  • Interlocked guards where additional security required
  • Harsh environments where vibration, water or dust are problems
  • Food and beverage packing/filling systems
  • Dairy pharmaceutical paper industry
  • Can forming and filling, (aluminum, steel, plastic)
  • Semi-conductor manufacture/assembly
Technical Parameters
Model MPSS-2636-0712 MPSS-2636-0414
Operation Coded Non-contact Magnetically Coded Non-contact
Contact Arrangements 2×N/O+1×N/C 1×N/O+1×N/C
Safety Contact Operating Distance 7mm ON/12mm OFF 4mm ON/14mm OFF
Safety Contact Rating 24VDC/400mA 24VDC/200mA
Auxiliary Contact Rating 24VDC/400mA 24VDC/400mA
Switching Frequency 5Hz
External Fusing 400mA
Shock Resistance 30g, 11ms, (according to IEC 60068-2-27)
Resistance Against Vibration 10-55Hz,1mm, (according to IEC 60068-2-6)
IP Rating IP67 P67
Cable Length 10.0 meters 2 meters or5 meters
Operating Temperature -25℃ to +55℃ -25℃ to +70℃
Storage Temperature -25℃ to +55℃ -25℃ to +70℃

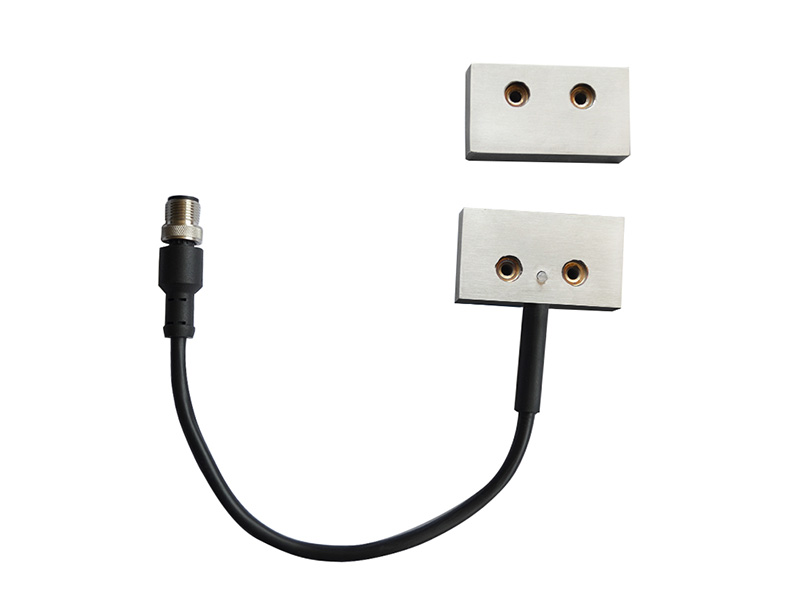

Construction Yellow PBT or 316 grade stainless steel resin filled
Certificates/Approvals CE
Standards EN ISO 13849-1 Safety of Machinery - Safety related parts of control systems EN ISO 62061 Safety of Machinery - Functional safety of safety related electrical, electronic and programmable electronic control systems EN 60204 Safety of Machinery Electrical equipment for machines EN 60947-5-1 Low voltage switch gear and control gear EN 14119 Interlocking devices associated with guards EN 60947-5-3 Safety of Machinery - Specification for low voltage switch gear and control gear
