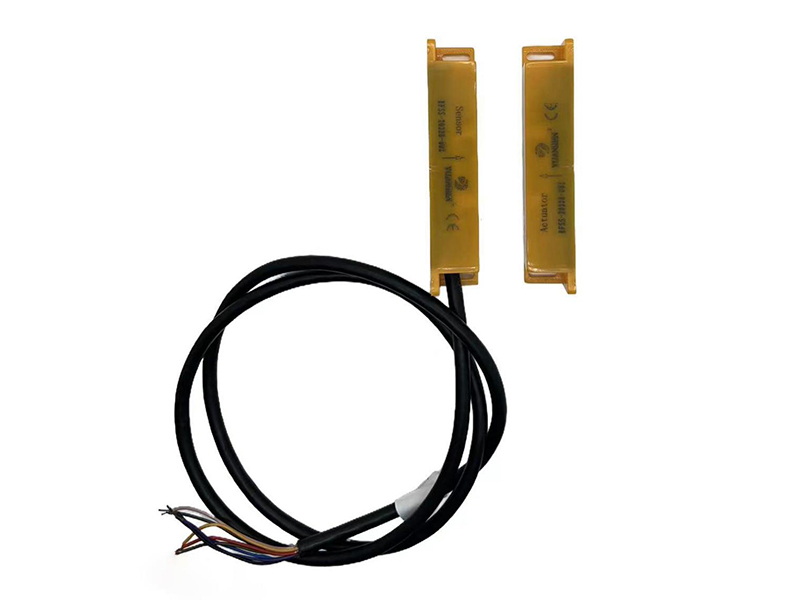

RFSS Non-Contact Safety Switch
Sensors and sensing equipment, Safety switches & accessories
RFSS are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts that can switch 400mA at 24Vdc, with tamper proof RFID switching, the RFSS is suitable for use with most safety relays. A dual color built in LED helps the operator to quickly diagnose any faults. The RFSS safety switches are available with 2, 3 or 5 meter pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.
Features
- Security contact: 2 x redundant NO 200mA/24V
- Auxiliary diagnostics contact: 1 x 400mA PNP
- Detection encoding: inviolable multi-code
- Indicator: LED indicates code recognition
- Pre-wired system: 2, 3 or 5 meter cable
- Protective class: IP 67
- Controls the position of safety doors/casings with RFID encoding
- Level of performance with safety controller is up to PLe
- Safety class without an external controller is SIL3 (ISO 13849-1)
Applications
- Can forming and filling (aluminum, steel and plastic)
- Packaging equipment
- Pick and place assembly equipment
- Semiconductor equipment
- Plastic molding equipment
- Woodworking machinery
- Textile machinery
- Printing machinery
Technical Parameters
| Model |
RFSS-1015 |
RFSS-1015A |
RFSS-0912 |
| Contacts |
2 NO+1 NC |
2 NO+1 NC |
2XNO |
| Supply Voltage Options |
24VDC (+/-15%) |
24VDC(+/-15%) |
24Vdc |
| Safety Contact Rating |
24VDC/400mA |
24VDC/3 Amps |
24v/200mA |
| Safety Contact Switching |
10mm ON/15mm OFF |
10mm ON/15mm OFF |
9mm ON/12mm OFF |
| Auxiliary Contact Rating |
24VDC/300mA |
24VDC/3 Amps |
24V/200mA |
| Auxiliary Contact Switching |
10mm ON/15mm OFF |
10mm ON/15mm OFF |
1XNC |
| External Fuse (customer supplied) |
250mA Fast Acting |
2.5 Amps Fast Acting |
2.5 Amps Fast Acting |
| Response Time |
50ms |
50ms |
50ms |
| Construction |
Orange ABS |
Orange ABS |
PBT, resin filled |
| IP Rating |
IP67/IP69K |
IP67/IP69K |
P67 |
| Operating Humidity |
5%-95% |
5%-95% |
5%-95% |
| Operating Temperature |
-10 to +60℃ |
-10 to +60℃ |
-10 to +60℃ |
| Storage Temperature |
-10 to+60℃ |
-10 to +60℃ |
-10 to+60℃ |
| Fixing |
4XM4 Security Screws |
4XM4 Security Screws |
4xM4 Security Screws |
| Connection |
Pre-Wired or 150mm with M12 QD |
2m(standard)3 or 5 meter can be selected |
| Coding |
Individually Coded |
Individually Coded |
RFID |
| Indication |
Dual Color LED |
Dual Color LED |
Dual color LED |
| Safety Related Data |
| SIL CL with EN IEC62061 |
3 |
3 |
3 |
| PFHd with EN IEC62061 |
4.3×10⁻⁸ |
4.3×10⁻⁸ |
4.3×10⁻⁸ |
| PFH |
6.52×10⁻⁸ |
6.52×10⁻⁸ |
6.52×10⁻⁸ |
