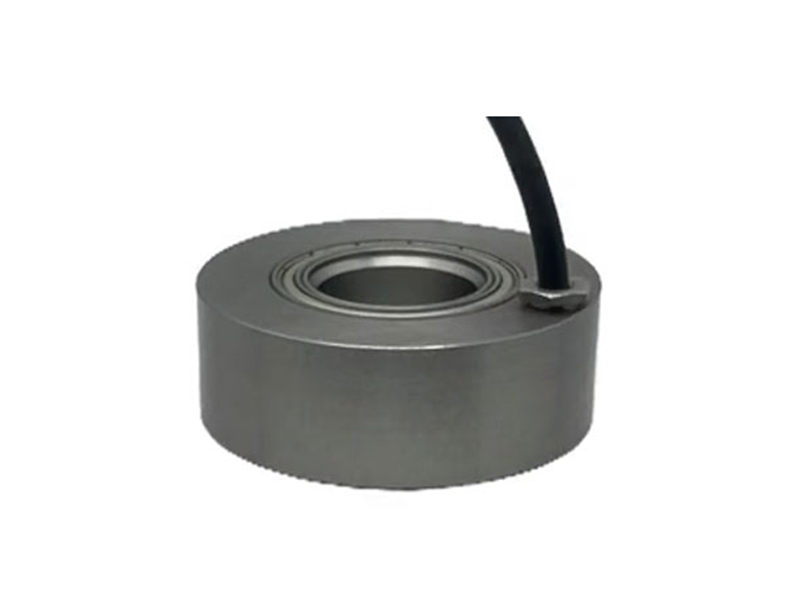

Yuanben ADS series rotary angle displacement sensors may potentially be mounted adjacent to the pedal to measure how far the pedal is depressed or released by the operator. The sensor senses the change in pedal position and sends a signal to the engine control unit to either increase or reduce the flow of gasoline and air across the throttle plate, as needed.
Yuanben provides non-contact operation, low torque actuation and reduces worn-out mechanisms. Wider sensing range and multi factory-set operating ranges (60°, 90°, 120°, 180°, 270°, 360°) allow the customer to select the range of travel needed for the application, and used in harsh transportation and industrial applications at a competitive cost.
| Type | |
|
|
| Supply Voltage | 5 ±0.5 VDC | 10VDC to 30VDC | |
| Supply Current | Normal | 20 mA max | 20 mA max. |
| During output to ground short | 25 mA max | 25 mA max. | |
| Output | Standard | 0.5 VDC to 4.5 VDC ratio-metric | 0.5 VDC to 4.5 VDC ratio-metric |
| Inverted | 4.5 VDC to 0.5VDC ratio-metric | 4.5 VDC to 0.5 VDC ratio-metric | |
| Output Signal Delay | 4 ms typical | 4 ms typical. | |
| Reverse Polarity Protection | 10 VDC | -10 VDC | |
| Over-voltage Protection | 10 VDC | 10VDC | |
| Output to Ground Short Circuit | Continuous | Continuous | |
| Resolution | 12 bit | 12 bit | |
| Output Load Resistance (pull down to ground) | 10 kOhm typical | ||
| EMI | Radiated immunity | 100 V/m per IS011452-2 from 200 MHz to 1000 MHz | |
| Conducted immunity | 100 mA BCI per ISO11452-4 from 1 MHz to 200 MHz | ||
| Expected Life | Infinite rotation | ||
| Air Gap | Bare magnet actuator | 3 mm ±0.5 mm [0.12 in ±0.02 in] | |
| Housed magnet actuator | 2 mm ±0.5 mm [0.08 in±0.02 in] | ||
| Misalignment | 2 mm [0.08 in]max. | ||
| Material | Magnet | NdFeB | |
| Sensor housing | PBT plastic | ||
| Housed magnet overmold | PPS plastic | ||
| Housed magnet | Brass | ||
| Mating Connector | AMP Super-seal 282087-1 | ||
| Mechanical End Stop | No | ||
