ADS-I Inclination Sensor

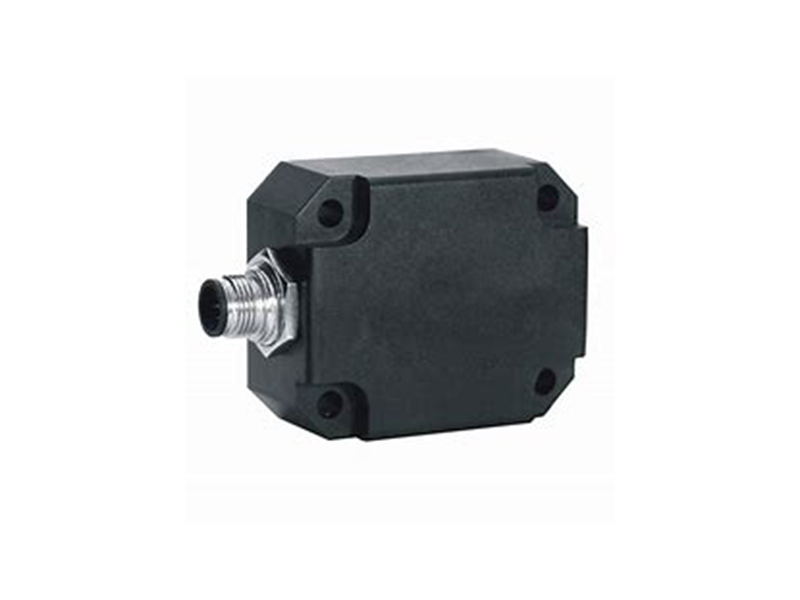

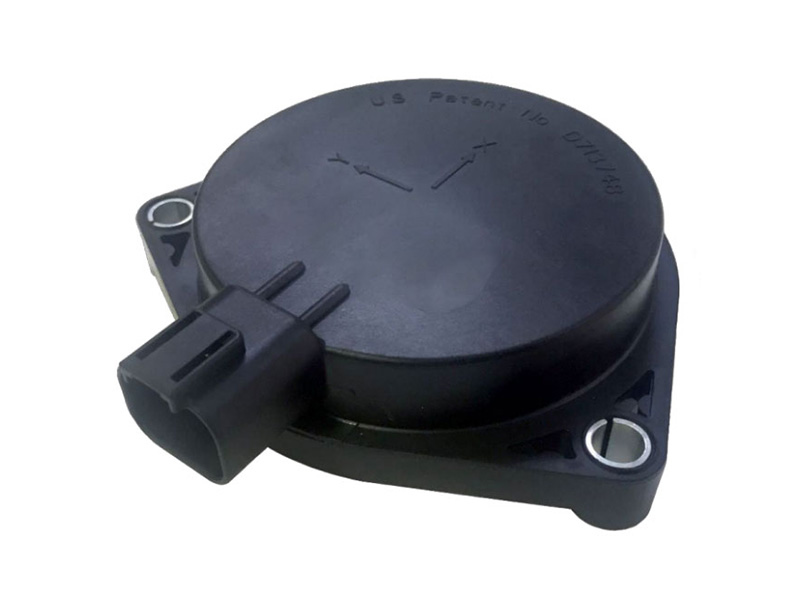

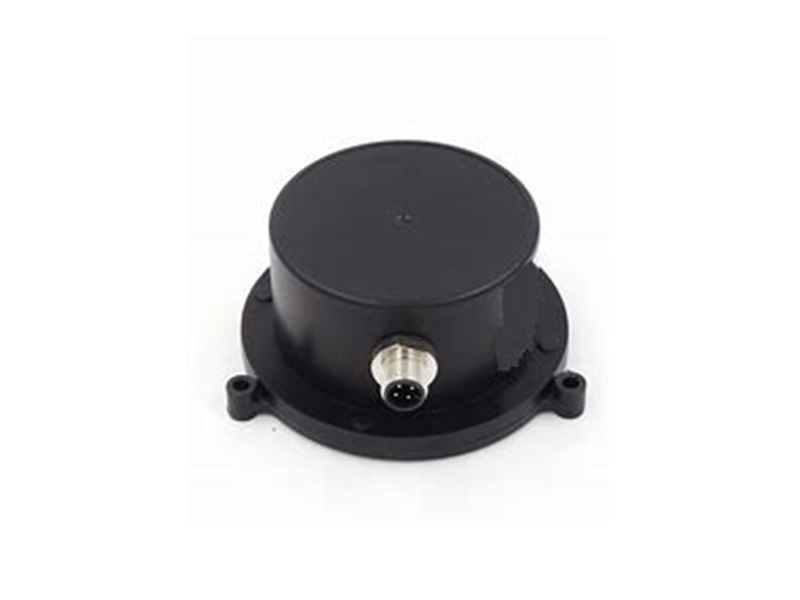

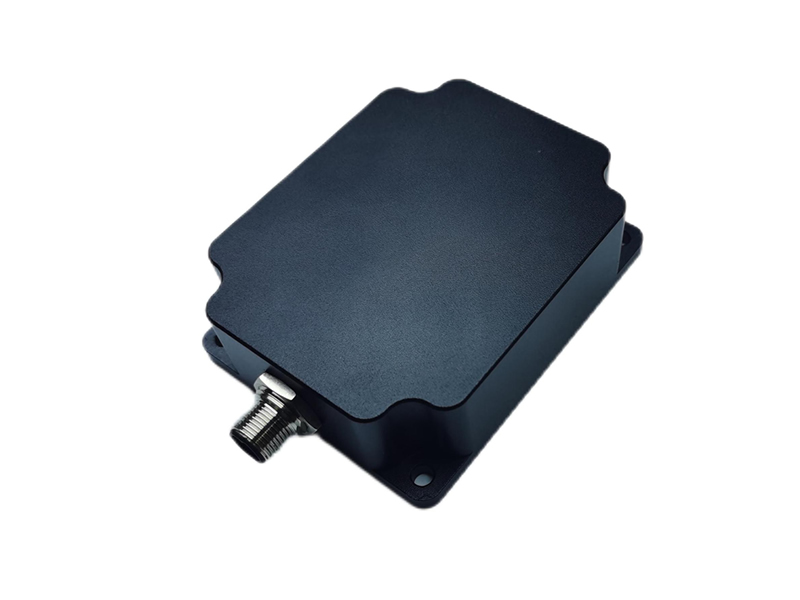

Yuanben has developed and produced a high-precision biaxial inclination sensor (also known as tilt sensor). The maximum measurement range of biaxial can reach ±90°, with CAN open and J1939 communication interface output.
Features
- Stable communication, cost-effective
- All parts are industrial grade, with reliable preformance
- Protection grade of IP67
- Direct current wide voltage supply
Applications
- Aerial work platform safety monitoring
- Angle measurement, inclination attitude recorder
- Security control and monitoring
- Cement pump truck
Technical Parameters
| Item |
Test Condition |
Minimum Value |
Typical Value |
Maximum Value |
| Operating Voltage (V) |
Direct Current |
8 |
12 |
30 |
| Static Operating Current (mA) |
VCC=12V (non-loaded) |
15 |
20 |
25 |
| Operating Temperature (℃) |
|
-40 |
|
+85 |
| Measurement Range (°) |
Dual Axis |
|
±10, ±30, ±80, ±90 |
|
| Resolution (°) |
Measuring range≤±90 |
|
0.01, 0.05, 0.1 |
|
| Accuracy (°) |
Measuring range ≤±10 |
Resolution: 0.01 |
|
+0.05 |
±0.1 |
| Resolution: 0.1 |
|
±0.2 |
±0.3 |
| Measuring range ≤±30 |
Resolution: 0.01 |
|
±0.1 |
±0.2 |
| Resolution: 0.1 |
|
±0.3 |
±0.4 |
| Measuring range <±60 |
Resolution: 0.01 |
|
±0.15 |
±0.3 |
| Resolution: 0.1 |
|
±0.4 |
±0.5 |
| Measuring range ≤±80 |
Resolution: 0.01 |
|
±0.4 |
±0.8 |
| Resolution: 0.1 |
|
±0.8 |
±1 |
| ±80<measuring range≤±90 |
|
±5 |
±10 |
| Repeatability (°) |
Measuring range ≤±10 |
Resolution: 0.01 |
|
+0.04 |
|
| Resolution: 0.05 |
|
±0.1 |
|
| Resolution: 0.1 |
|
±0.2 |
|
| Measuring range ≤±30 |
Resolution: 0.01 |
|
±0.06 |
|
| Resolution: 0.1 |
|
±0.25 |
|
| Measuring range <±60 |
Resolution: 0.01 |
|
±0.1 |
|
| Resolution: 0.1 |
|
±0.35 |
|
| Measuring range <±80 |
Resolution: 0.01 |
|
±0.2 |
|
| Resolution: 0.1 |
|
±0.5 |
|
| Measuring range ≤±90 |
|
±4 |
±8 |
| Zero Position Temperature Drift (℃) |
-40 to +85℃ |
|
0.005 |
0.01 |
Note:
- Resolution refers to the smallest change that can be detected within the measurement range, the greater the measurement angle, the lower the resolution.
- These parameters are the angle data when the filter coefficient is 5 after 10 seconds of power-on.
- Zero point temperature drift refers to the angle offset when the ambient temperature changes (the output angle is constant at room temerature).
