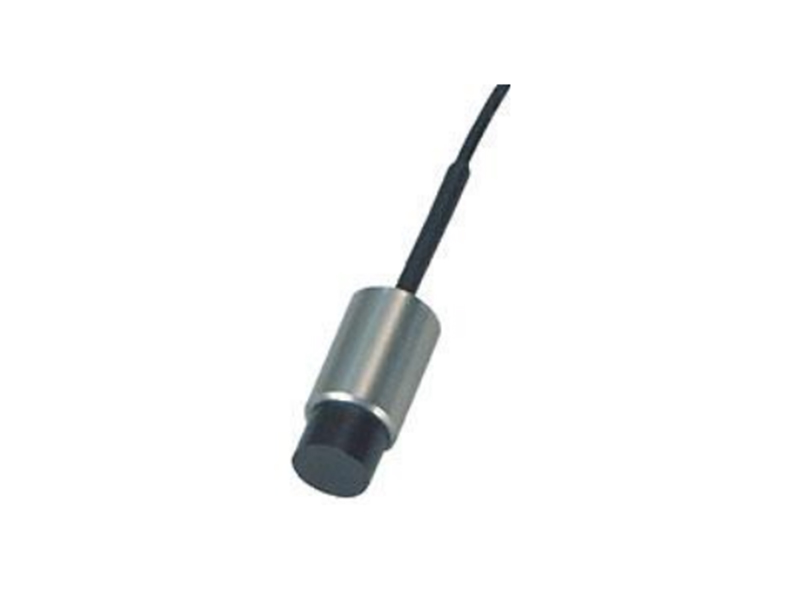

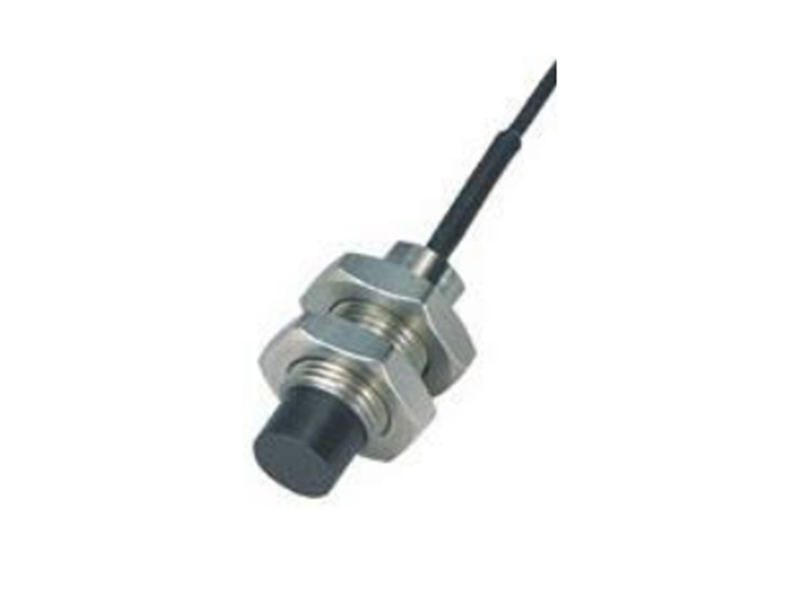

ECDS series eddy current displacement sensor integrates signal processor and high-performance probe. The head of the probe is made of polyphenylene sulfide (PPS) engineering plastic through injection molding process, which is resistant to high and low temperature and various chemicals. The probe housing is made of aluminum or SUS304 stainless steel, and the circuit board is encapsulated with epoxy resin, which is moisture-proof, dust-proof and anti-corrosion, and the protection grade reaches IP67. With various options of signal output, this eddy current displacement sensor is widely used in power, petrochemical, metallurgy, machinery and other industries. If you need to measure metal plate thickness, detect material damage and deformation, or other special applications, we can customize the eddy current displacement sensor to solve your needs.
ECDS series eddy current displacement sensor is used to measure the axial displacement, radial vibration, especially for high speed rotating machinery such as large compressor unit, steam turbine, turbine units, fan, motor, pump and other equipment.
| Model | |
|
| Measuring Distance | 0-1000μm, 0-2000μm | 0-1000μm, 0-2000μm, 0-4000μm |
| Power Supply | +12VDC～+30VDC | |
| Frequency Response | DC to 5kHz (-3dB) | DC to 1kHz (-3dB), 0-5KHz (0.5dB) |
| Linearity Error | Within±1.0% of F.S. | < 1mm, within±0.5% of F.S. at 25℃, < 2mm, < 1%>2mm, < 1.5% |
| Zero Shift | Max. -50% of F.S. | |
| System Temperature Drift | 0.1%/℃ | |
| Output | 0 to 5VDC | 0-5VDC, or 4-20mA; 1-5V or 1-10V can be customized |
| Output Load | Load current: 5mA max. Output impedance: within 1kΩ | Voltage output: output impedance < 500; Current output: load resistance < 5000 |
| Transmission Method | Amplitude modulation | |
| Input | Combined with sensor | |
| Carrier Frequency | 800kHz to 4MHz | |
| Sensing Target | All conductor | All conductor |
| Operating Temperature Range | Sensor: -10 to +130℃ Converter: 0 to 50℃ | Sensor: -10 to 130℃ Converter: 0 to 50℃ |
| Sensor Material | ||
| Case | Aluminum die-cast | Copper plate and aluminum |
| Sensor Tip | Ceramic or PPS | |
| Sensor Cable | Dia.2mm (except sensing 2000μm) | |
| High-Frequency Coaxial Cable | Length 0.5m or 1.0m | |
| Converter | ||
| Input Signal | Amplitude modulation signal | |
| Signal Supplied To Sensor | High-frequency current | |
| Amplitude Conversion Gain | Jumper selectable (shipped at×10 unless specified) | |
| Alarm Switch Output | ||
| Linear Rise Form | 10 points break form | |
| Output Abnormal Alarm | Contact output | |
| Alarm Output | Dry contact | |
| Alarm Contact Capacity | AC/DC24V 0.1ADC (load resistance) | |
| Electric Mode | Power supply, signal output, common terminal 3 wires | |
| Accessories (Option) | Output signal cable 2m (with connector) Power cable 3m (with plug) | |
