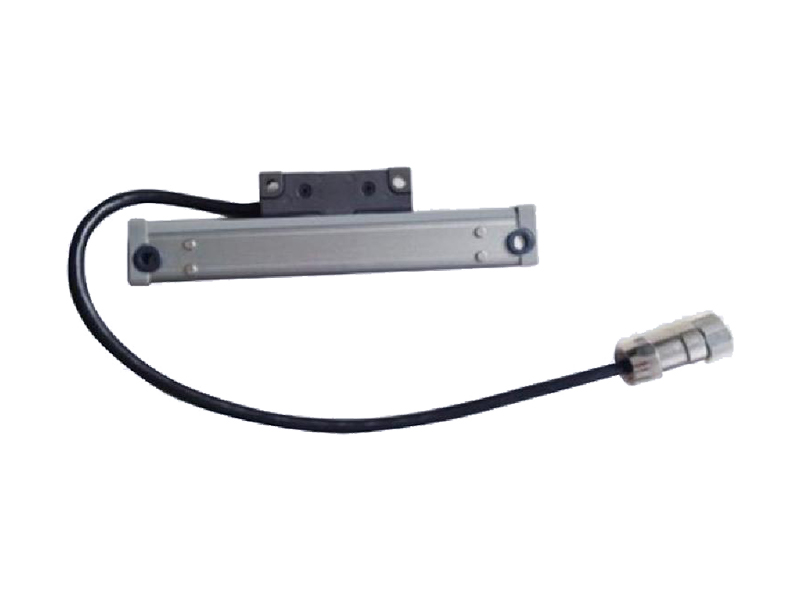

Yuanben offers LMDS-2000 series and LMDS-1000 series magnetic displacement sensors. These magnetic position sensors are designed for measuring distances of linear movements on pneumatic drives. With a selection of models having full-scale ranges from 5mm to 200 mm, linear displacement sensors feature a unique design that produces maximum operating forces of less than 4.4N. Available with specially designed mounting fixtures, these versatile sensors are ideally suited for use in research, manufacturing and process control applications.
These linear magnetic displacement sensors are primarily used for linear displacement detection in dusty environments, especially for mounting on large-size wood and stone processing equipment for length measurement of wood, stone and metal workpieces.
| Model | |
|
| Measuring Range (±1mm) | 20/35/50/80/100 mm | 5/10/25/50/100 mm |
| Working Voltage | 15-30VDC±10% | 15-30VDC±10% |
| Response Frequency | 10Hz | 10Hz |
| Resolution | 0.03 % full scale range (≥0.05 mm) | |
| Temperature Coefficient (FS) | < 0.01%/℃ | |
| Linearity Error | 0.3 mm | 0.5%FS |
| Precision | 0.06 % full scale range (≥0.1 mm) | |
| Velocity Testing Normal | < 1.5m/s | < 1.5m/s |
| Velocity Testing Typical | < 3m/s | < 3m/s |
| Output | 0-10V or 4-20mA analog output | |
| Protection | Over-voltage, output short and reverse polarity | |
| Resistance Load Max | 5000 | 5000 |
| Resistance Load Min | 2.0 kΩ | 2.0 kΩ |
| Current | 25 mA | 25 mA |
| Grade Protection | P67 | P67 |
| EMC Compatible | According to EN 60947-5-77 | |
| Chock | 30g/11ms | 30g/11ms |
| Vibration | 10-55 Hz/1 mm | 10-55 Hz/1 mm |
| Ambient Temperature | 20 to 70°C | 10 to 60℃ |
| Material | Reinforced PA | Reinforced PA |
| Cable and Connector | PUR cable, 2 m or Pigtail M8×l plug (300 mm PUR cable) | 0.18 in PVC 7/0.008(4.5 mm PVC 7/0.2), 4-core shielded, 2000mm |
| LED Function Indictor | Yellow | Yellow |
