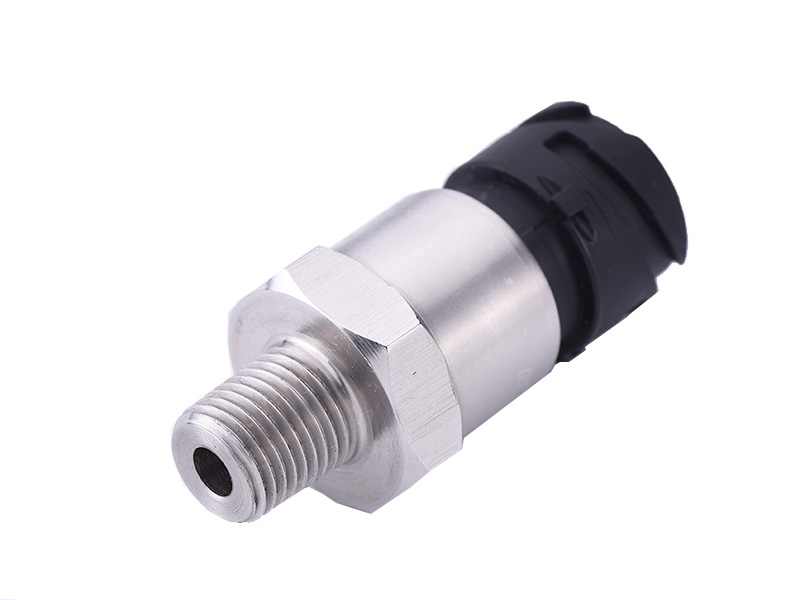

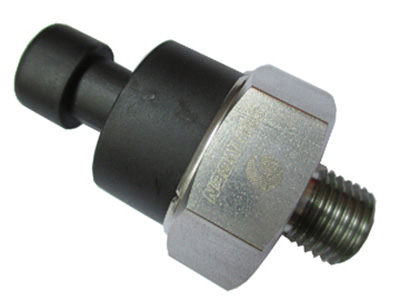

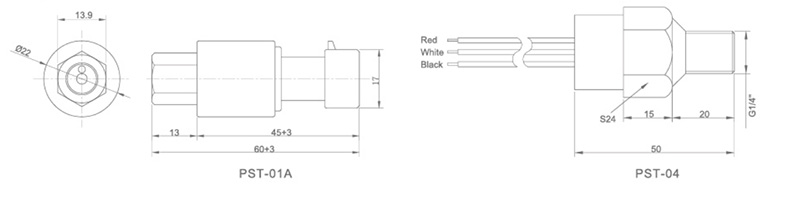

The PST pressure transmitter or pressure sensor is a high-performance instrument intended for industrial applications where the process media is compatible with the SUS316L stainless steel sensor material and the 304 SS process connection.
The PST pressure sensors employ a piezoresistive effect in silicon. Piezoresistor as a resistor is made from a piezoresistive material, the resistance of which changes with the variable mechanical stress
The sensor is welded to a pressure fitting of stainless steel or brass that provides a high overpressure capability and excellent durability against shock and vibration. The transducer circuitry is held securely within an internal cage and housed in a reinforced nylon and EPDM enclosure.
Model | PST-01 | PST-02 |
Supply Voltage | 5VDC | 12~36 VDC |
Output Voltage | 0.5-4.5VDC | 4~20mA; 0~5V, 0.5~4.5V |
Pressure Range | 250KPa; 700KPa; 1MPa; 1.6MPa | -0.1 ...0-0.02...3.10 Mpa, or Can Be Customized |
Proof Pressure | 150%FS | 150%FS |
Burst Pressure | 200%FS | 200%FS |
Accuracy | 1% | 0.25%; 0.5% or can be customized |
Stability | ≦0.2%FS | |
Zero-Temp. Coefficient | ±0.03%FS/°C | |
FS-Temp. Coefficient |
±0.03%FS/°C | |
Operating Temp. | -20~120°C | -20-120°C |
Compensated Temp. | -40~120°C | -40~120°C |
Pressure Port | 1/8NPT; G1/4(M) | 1/4NPT; Gl/2; Ml0 or can be customized |
Electrical Connection | 3 Pin Packard | Hirschmann; cable or can be customized, 3 pin packard |
Sealing Rating | IP65 | IP65 |
Housing | Brass; Stainless Steel | Stainless Steel |
Diaphragm | Stainless Steel | 316L Stainless Steel |
Non-linearity | 0.2% FS | |
Reliability | 0.2% FS |
