Pressure Switch

Magnetic sensors product, Intelligent sensing solutions

Pressure Switch
Pressure Switch Pressure Switch Pressure Switch Pressure Switch

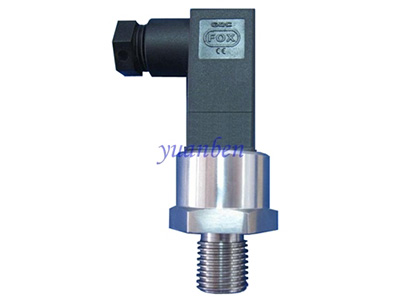

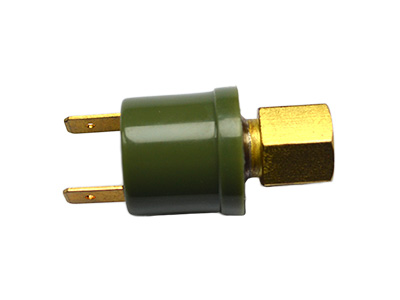

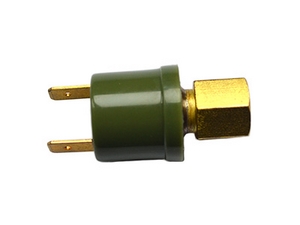

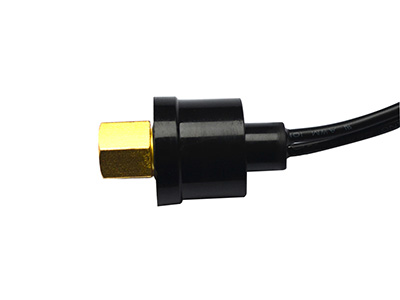

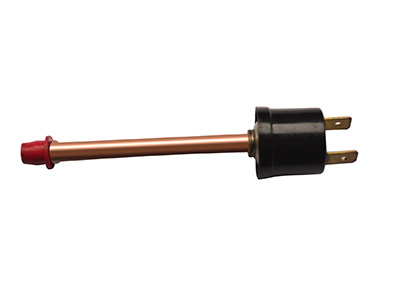

The PS series pressure switch is an advanced miniature pressure switch. It is an electrical switch that causes a circuit to open or close when the pressure of the controlled medium increases or decreases. It is widely used in refrigeration systems, oil pumps, air pumps, automobile industries and more. The mounting thread and electrical terminal can be selected according to the customer’s requirements. The micro-differential pressure switch, the temperature and pressure compound switch can be customized.

Features
  • Compact size, stainless steel material, excellent accuracy, and less temperature drift.
  • Mounting and usage is easy, M10 or 5/8- UNF mounting thread or pipe welding can be selected.
  • Automatic or manual reset can be selected
  • Competitive price
Technical Parameters
Item Technical Parameter
Pressure Setting Range Automatic Reset: 0.15MPa~3.05MPa Manual Reset: 2.5MPa~3.4MPa
Electrical Ratings 120/240VAC, 375VA; 28VAC/VDC, 2A 120VAC, 5.8FLA, 34LRA; 240VAC, 2.9FLA, 15LRA
Ambient Temperature and Humidity -35°C+120°C; less than 95% RH
Contact Resistance Less than l00MQ
Insulation Resistance More than 100MQ
Dielectric Withstand Voltage Withstand 1500VAC for one minute without breakdown
Burst Pressure 35MPa for one minute without body rupture and seals failure
Leakage Total maximum allowable leak rate of 7x 10-6cc/scc of at least 70%
Helium at l.OMPa
Durability 100,000 cycles(automatic); 6,000 cycles(manual)
Flame rated UL94V-0

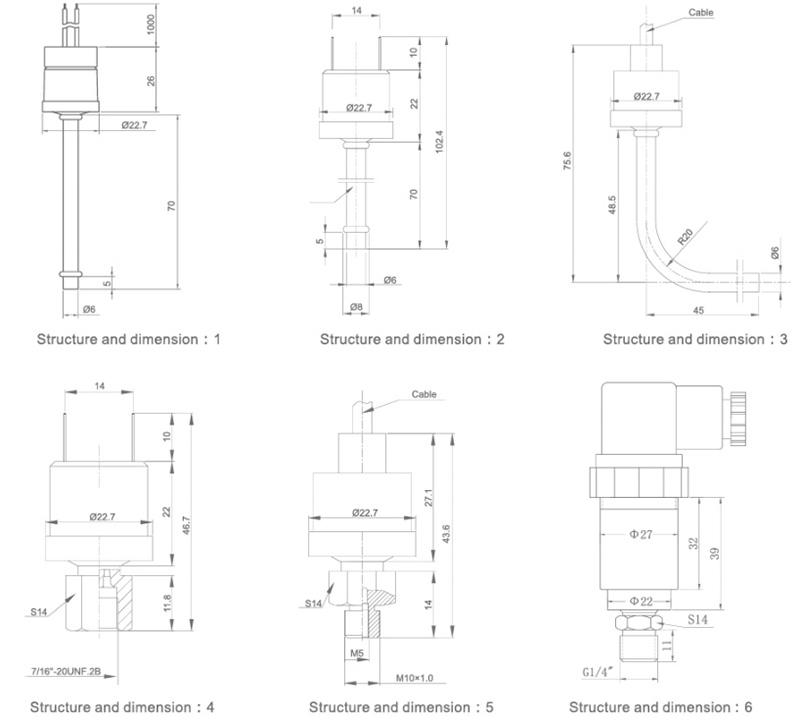

Dimension
Applications

The pressure switch is widely used in refrigeration systems, air-conditioners, oil pumps, air pumps, automobile industries and more.
