Digital Temperature Sensor
Temperature measurement, Sensor solutions
Features
- The R145-2200 is made using a TMP112 chip while the R1110-21000 is made using a DS18B20 chip. These are integrated inside the digital temperature sensor.
- These sensors feature a wide temperature measurement range, excellent stability, high accuracy, outstanding linearity, a fast response and an excellent shock resistance.

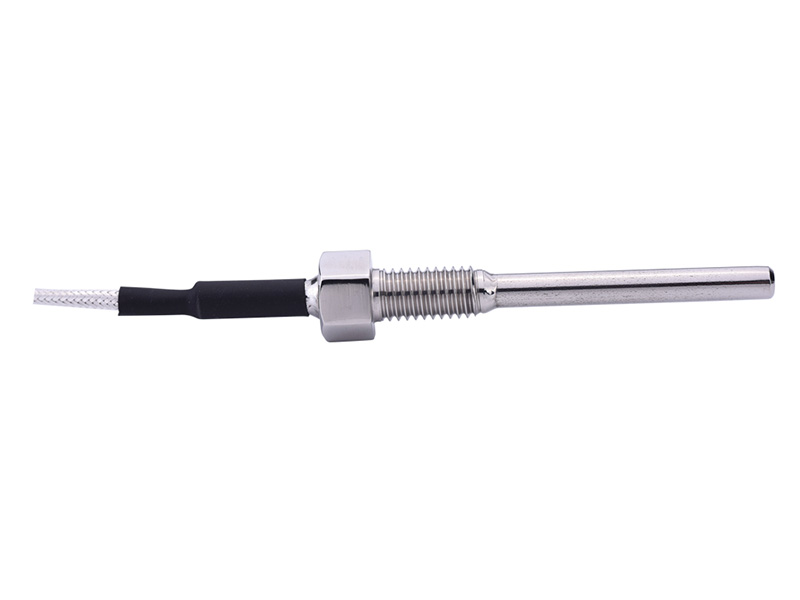

- The product is made of a stainless steel tube that is vibration resistant, tensile resistant, moisture resistant, and organic solvent resistant.
Technical Parameters
| Model | TSD-R145-2200 | TSD-R1110 -21000 |
| Interface | 4-wire mode, two-wire series output | Three-wire mode, single-bus series output |
| Temperature Resolution(℃) | 0.0625 | 0.0625 |
| Operating Temperature Range(℃) | -40 -+125 | -55 -+125 |
| Supply Voltage (Max )(V) | 3.6 | 5.5 |
| Supply Voltage (Min)(V) | 1.4 | 3.0 |
| Supply Current (Max)(μA) | 10 | |
| Supply Current (Min)(μA) | 7 | |
| Long-term Stability (hour) | 30000 | 3000 |
| Cable Technical Parameters | AWG28(can be customized) | AWG28(can be customized) |
| Cable Length(mm) | 240(can be customized) | 245(can be customized) |
| Protection Class | IP67 | IP67 |
| Housing Material | SUS304 | SUS304 |

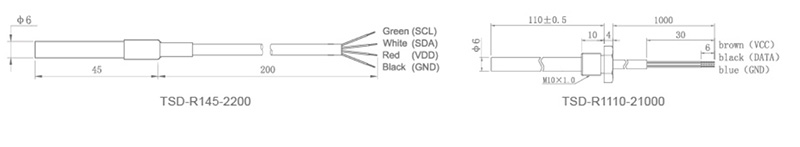

Dimension
Applications
YUANBEN’s digital temperature sensor is used in portable and battery-powered applications, power-supply temperature monitoring, computer peripheral thermal protection, battery management system, office machines, thermostat controls, electromechanical device temperatures, industrial controls, test equipment, medical instrumentation and more.
