TVPC Temperature Speed Controller

TVPC Temperature Speed Controller
TVPC Temperature Speed Controller TVPC Temperature Speed Controller TVPC Temperature Speed Controller

The TVPC temperature speed controller combines two critical components: the TVS temperature probe and the TVP magnetic sensor. Designed for installation on fluid couplings, the TVPC controller effectively replaces conventional thermal trip switches and fusible fill plugs, providing protection against overheating, overload, and under-speed conditions. By continuously monitoring temperature and rotational speed, it triggers protective actions if temperatures exceed the preset limit or if speeds drop below defined thresholds, ensuring optimal and safe operation.

Features
  • Stable and reliable operation with customizable temperature set points.
  • Easy to install, user-friendly, and maintenance-free design.
  • Engineered for use in challenging, hostile industrial environments.
  • Dust-proof and explosion-proof construction rated IP65 for robust protection.
  • Adjustable rotational speed threshold ensures reliable system protection, delivering prompt alerts when operating below specified speeds.
Applications

The TVPC temperature speed controller is ideally suited for hydrodynamic power transmission systems, extensively utilized in industries such as cement production, metallurgy, and other demanding industrial applications requiring precise temperature and rotational speed monitoring.

Technical Specifications
Working Power 85 to 260VAC (85 to 260VDC), 0.5A

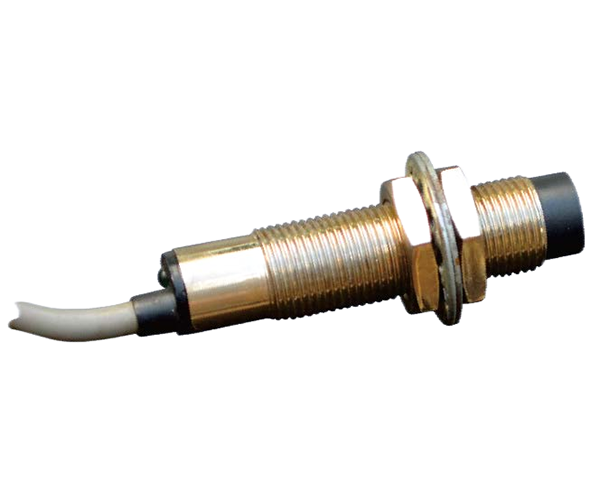

Standard Signal Inspection Probe TVPS-125-2, Mounting thread M12x1.0

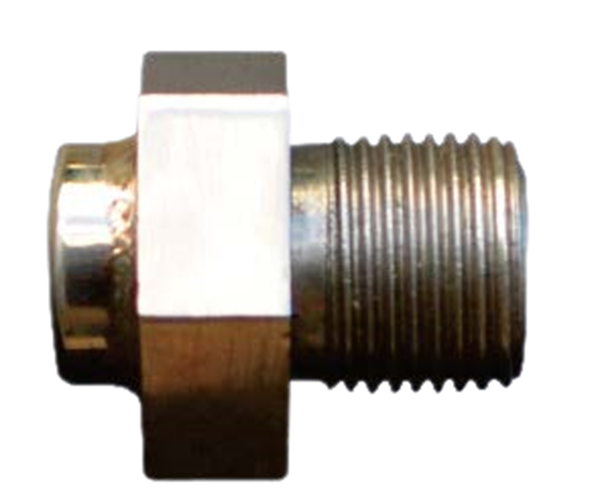

Standard Temperature Sensor TVPS-125-M18 Sensor standard selectable according to alarm oil temperature requirements
Alarm Oil Temperature 125℃ (or selectable according to customer requirements)
Mounting Air Gap 2.0mm (maximum)
Mounting Form Horizontal or insert 1-9999 rpm(6 bit display)
Monitor Range of Speed Relay alarm activates and measurement continues when speed reaches the preset threshold value.
Electrical Resistance Strength 2000VAC
Output Form Two relays and one switching output A. Relay output: voltage 250VAC, current 2.0A, power 500VA B. Switching output:14V/10mA (with short-circuit protection) C. Alarm: Audible and visual alarm, main power cut-off upon: a. Over-temperature alarm (e.g., 125℃) b. Over-speed alarm (e.g., 5000 RPM) & low-speed alarm (e.g., 15 RPM) Alarm settings and parameters retained even after an alarm event.
Protection Class Meter section: IP20; Test probe and temperature speed sensor: IP65.
Ambient Working Temperature -25℃ to +60℃
Ambient Working Humidity ≤85% RH

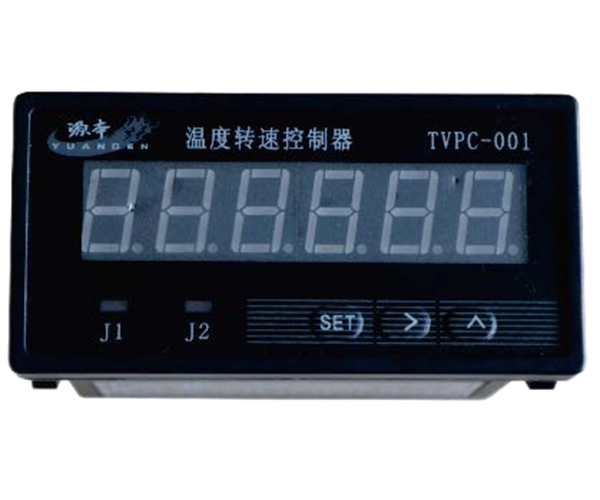

Installation Dimension (W×H×D) 96×48×(82), Panel cut-out:92×45
Material of Meter Housing ABS
Probe and Sensor Housing Stainless steel SS304
Contact Form M8 spiral terminals
Explosion Proof Selectable based on ambient temperature and customer requirement
Length of Cable Standard 2000 mm (customizable according to customer requirement)
