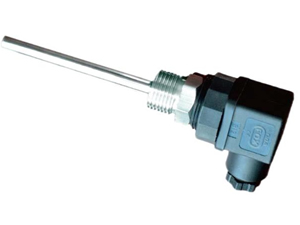

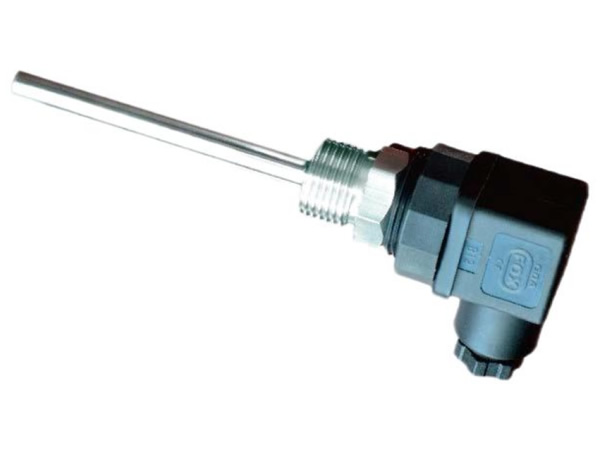

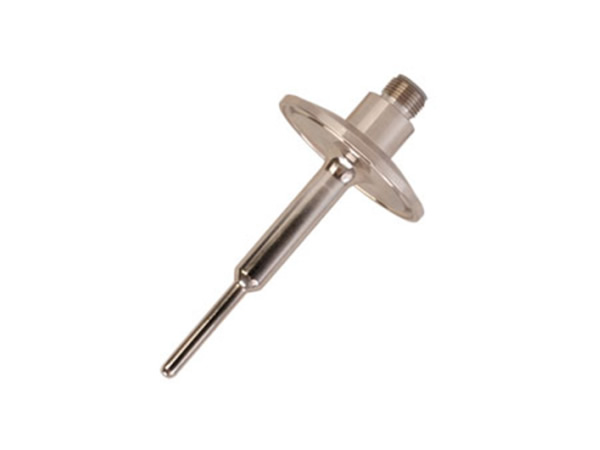

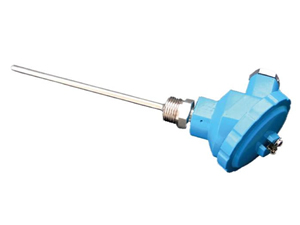

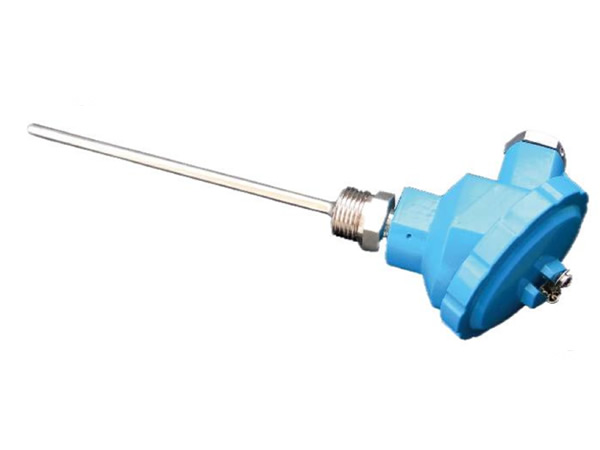

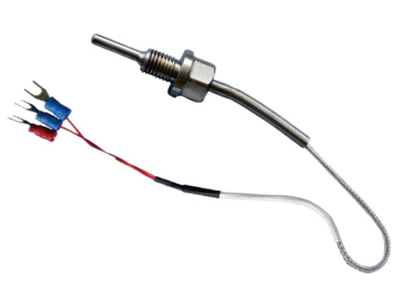

TSP Series Temperature Sensors
Temperature measurement, Sensor solutions
Features
- Wide measuring range
- Excellent resistance and interchangeability
- High degree of accuracy and precision
- Excellent linearity
- Fast response
- Excellent shock resistance
- High-pressure resistance
- Various temperature scale specifications are available to choose from
- Diverse installation methods
- Diverse shell materials
- Simple but streamlined appearance
Technical Parameters
| Model | TSP-070 | TSP-075 |
| Testing Temp. Range | -20℃~l50℃ | -20℃~ 150℃ |
| Sensor | Pt100 Platinum film | Pt1000 |
| Sensitivity | 0.00385ohm/ohm/℃ | 0.00375ohm/ohm/℃ |
| Tolerance (IEC751) | B class | A class |
| Accuracy | ±0.02℃ | ±0.01℃ |
| Stability | 0.04% (200°C, 1000 hours) | 0.04% (200°C, 1000 hours) |
| Repeatability | ±0.05℃ | ±0.05℃ |
| Thermal Response Time (sec.) | 10sec.max | 10sec.max |
| Insulation Resistance | > 100MΩ, at 20℃ >2 MΩ | > 100MΩ, at 20℃ >2 MΩ |
| Mounting Vibration | 40g 10~2500 Hz | 40g 10~2500 Hz |
| Mounting Shock | 30G | 30G |
| Overload | 180℃ | 180℃ |
| Max Current | 2mA | 2mA |
| Testing Current | 1.0mA | 1.0mA |
| Probe Dim. or Code | Dia. 4.0 *25mm | Dia. 4.0 *25mm |
| Material of Probe | SUS304 | SUS304 |
| Mounting Threads | M l 2 | M l 0 |
| Working Pressure | 15 bar | 15 bar |
| No. of Wire | 2-wire | 2-wire |
| Connecting Cable (Free wire ) | UL2464, AWG26, 200mm | UL2464, AWG26, 200mm |
| Protection Class | IP65 | IP65 |
| Service Life | three years | three years |
| Storage Temperature | -20℃-180℃ | -20℃-180℃ |
| Typical Application | Hot water | Liquid, gas |

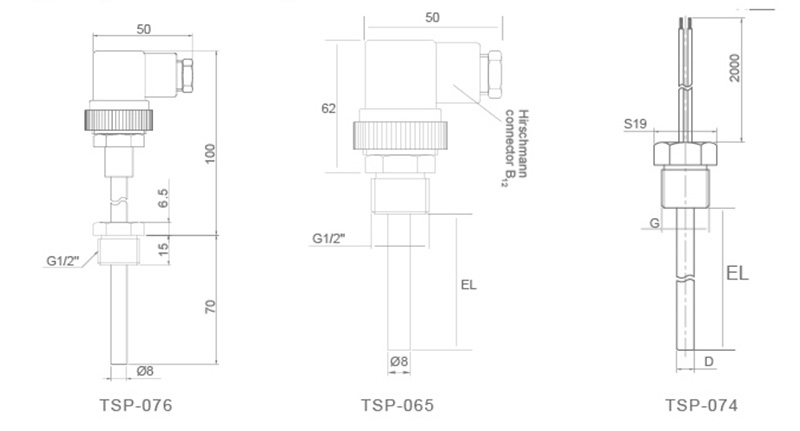

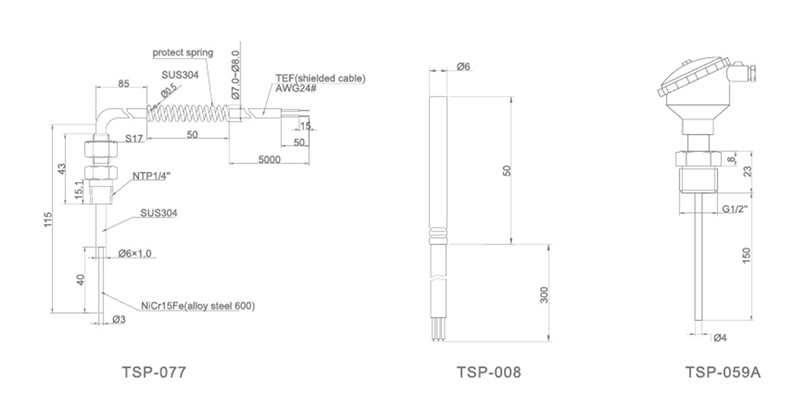

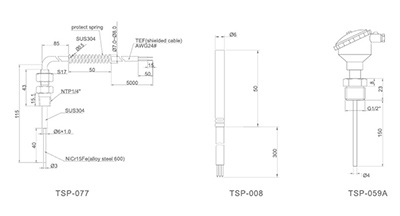

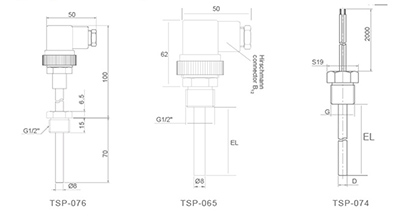

Dimension
Applications
- The TSP resistance temperature sensor used in the industry is a temperature-sensing component. It quickly determines the temperature of the measured medium, then provides a passive signal according to temperature variations in water or air. Because of this, the temperature sensor is widely used in heating, industrial control, building control, and other environmental control applications.
- The TSP temperature sensors feature a variety of technical specifications according to accuracy requirements. They are also available in different shapes.
- The resistance temperature sensors are usually equipped with stainless steel probes for process insertion. The mounting thread length is chosen by the client. These sensors are widely used in a number of different industries and household equipment for temperature measurements in water and under a pressure of up to 100 bars, including home appliances (ovens, refrigerators, air-conditioner), cars (engine, car interior), processing industries (plastic, food, chemical, car, electronics industries), domestic and industrial heating facilities.
